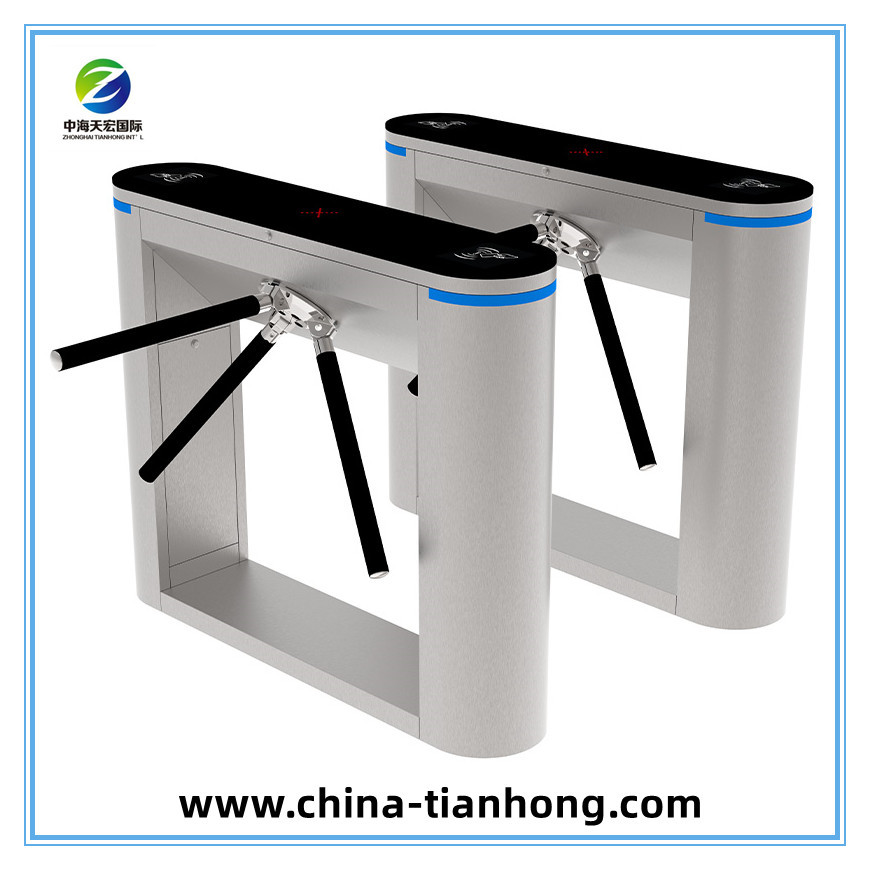

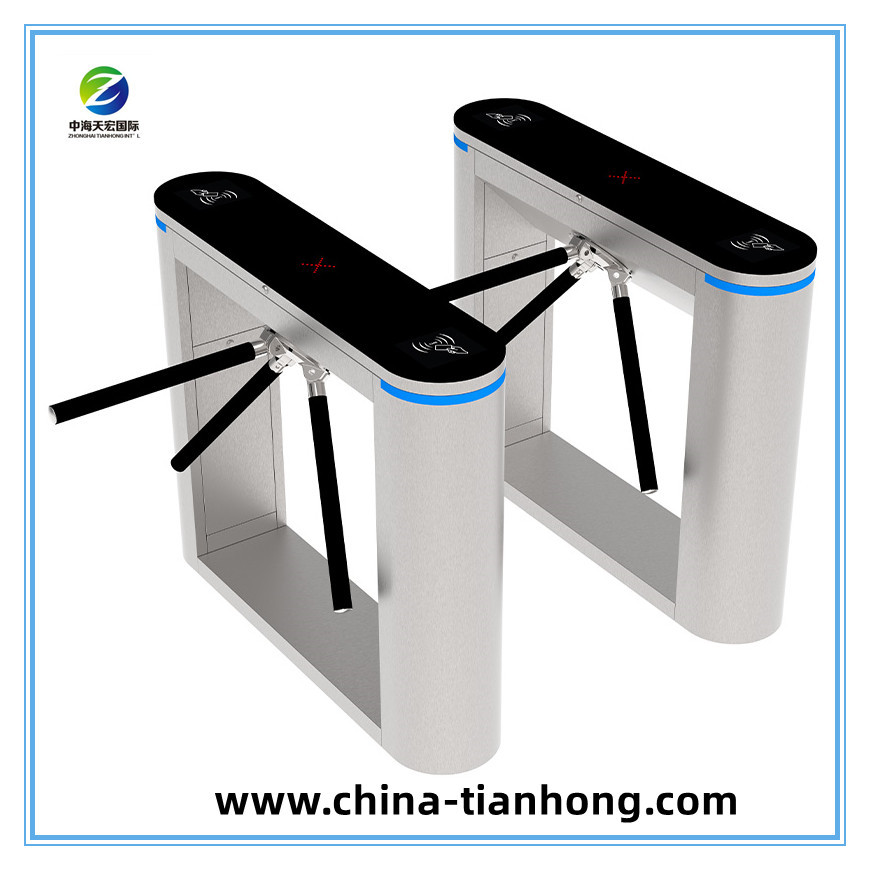

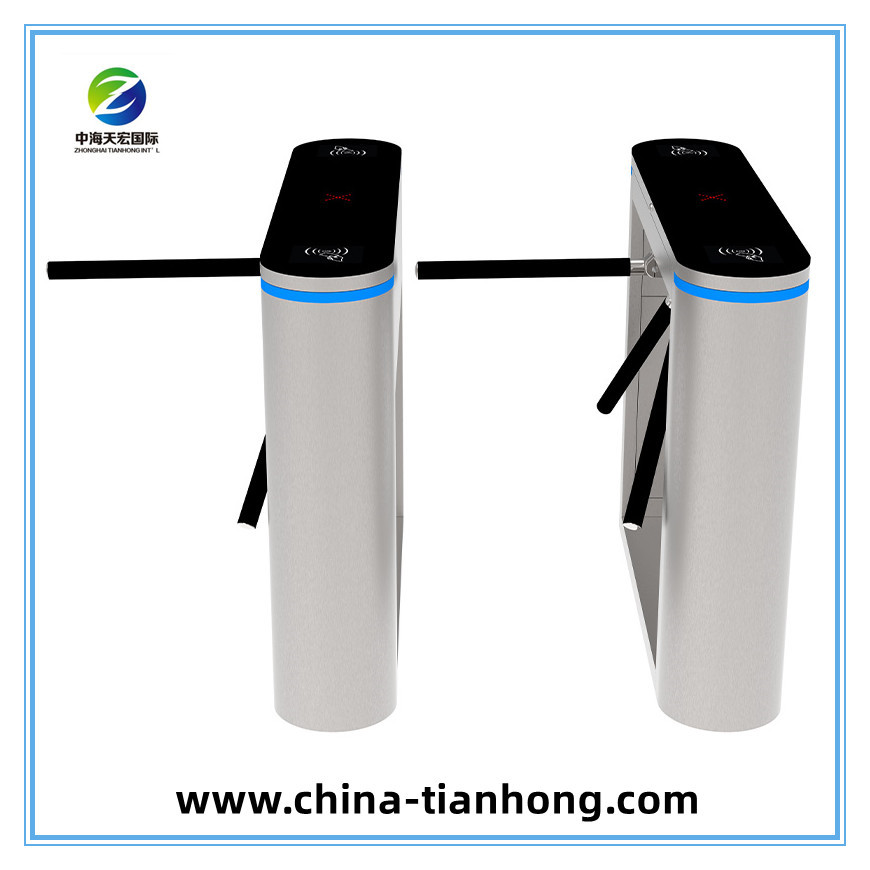

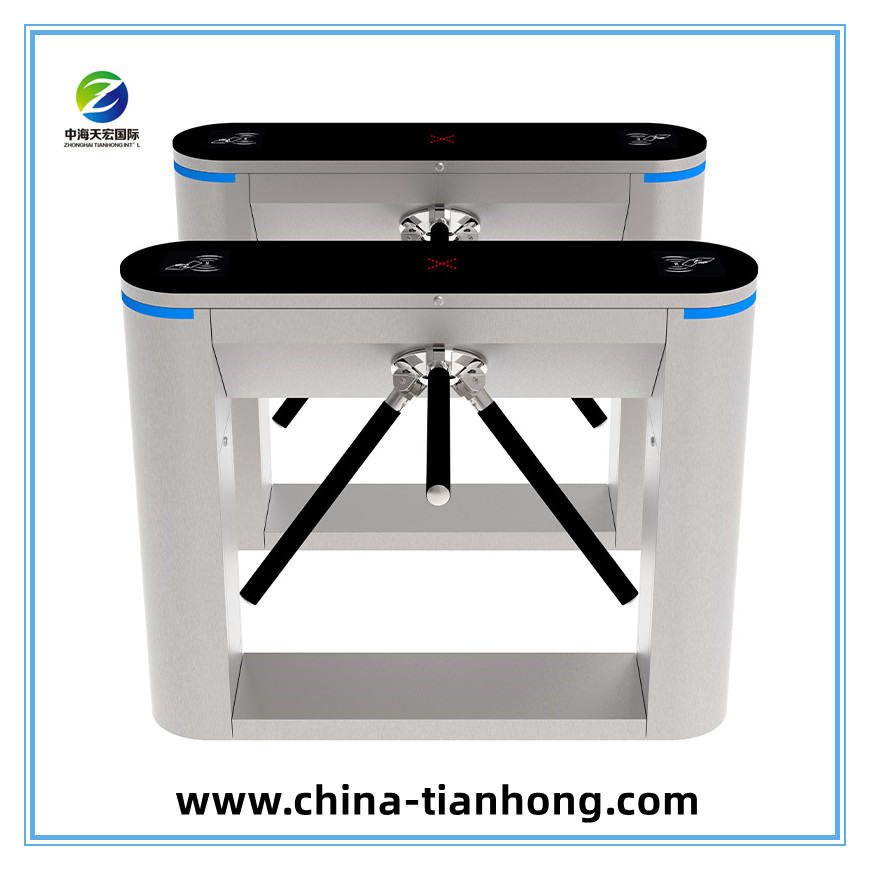

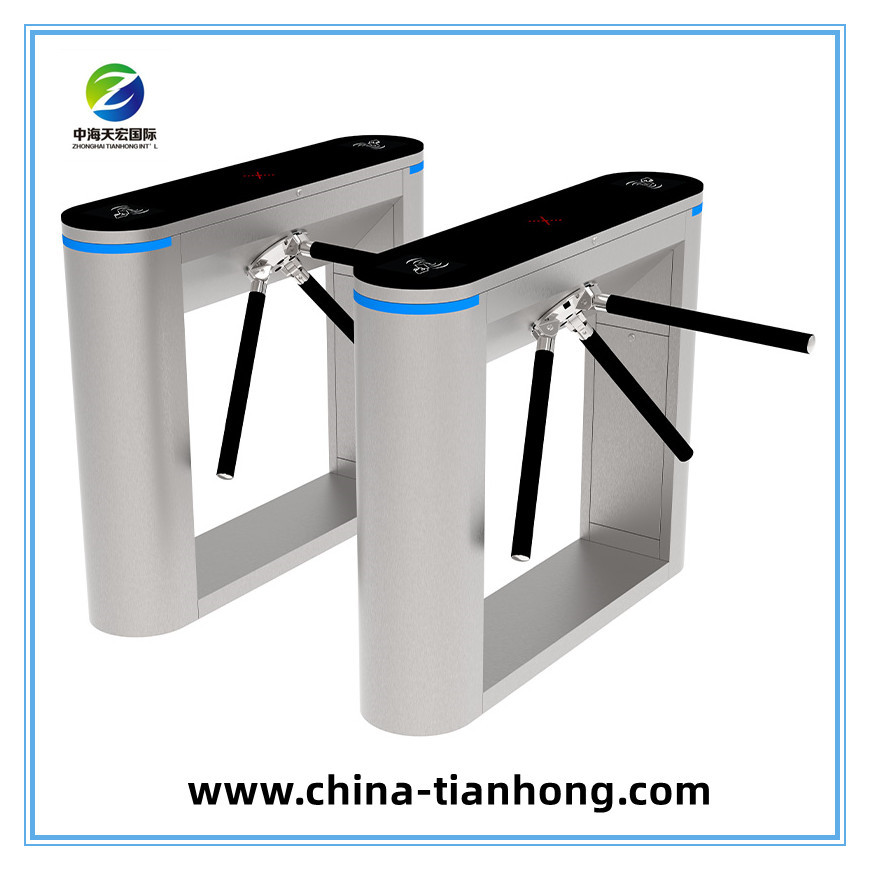

Biometric RFID Access Control Tripod Turnstile Waist Height Turnstile for Building Entrance
The Biometric RFID Access Control Tripod Turnstile, specifically designed as a waist-height turnstile, represents a cutting-edge solution for secure building entrances. Combining the precision of biometric technology with the efficiency of RFID access control, this turnstile ensures a robust and reliable security infrastructure.
At waist height, the turnstile offers a balance between security and user convenience. It serves as an effective deterrent against unauthorized access while allowing for a seamless and unobtrusive passage for authorized individuals. This makes it suitable for a wide range of applications, from corporate offices and government facilities to educational institutions and public venues.
The integration of biometric technology adds an extra layer of security by utilizing unique physical or behavioral traits for authentication. This could involve fingerprint recognition, iris scanning, or facial recognition, depending on the system's configuration. Biometric authentication enhances the accuracy of identity verification, reducing the risk of unauthorized access through stolen access cards or PINs.
In conjunction with biometrics, the turnstile incorporates RFID access control, allowing individuals with authorized RFID cards or key fobs to gain entry. The RFID technology ensures swift and contactless authentication, contributing to the overall efficiency of the access control system. The turnstile's compatibility with various RFID technologies provides flexibility to adapt to different access card systems.
The compact and sturdy design of the turnstile makes it well-suited for high-traffic environments. Its durable construction, often featuring stainless steel, ensures longevity and resistance to wear and tear. Additionally, the turnstile can be seamlessly integrated into existing security infrastructure, making it a versatile choice for retrofitting or upgrading building access systems.
The Biometric RFID Access Control Tripod Turnstile, with its waist-height design, strikes a balance between security and user convenience. Leveraging biometric and RFID technologies, it offers precise and reliable access control for building entrances, making it an ideal solution for enhancing security in diverse environments.
Customize extended functions:
1. Counting and alarm functions;
2. Case material is 304 #, other materials can also be customized
3. Remote control switch
4. Dynamic integrated face recognition
5. Emergency escape function can be added to open the gate by remote button in
case of special emergency
6. Box thickness standard 1.5mm
7. Fingerprint recognition of time attendance
8. QR code
Main features:
- Flow direction guide with high bright led lamp.
- High speed DSP technology, life up to 5 million times.
- Malfunction self-detection, which is easy for operation and maintenance.
- Anti-tail, prevent people follow pass without verified.
- Anti-panic, door will keep opened automatically while power cut off.
- One directional pass or bi-directional pass is settable.
- With crash proof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash.
- Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc.
Specifications of Tripod Turnstile Gate:
| Item | Fingerprint /Face/RFID Card scanner tripod turnstile |
| Lane width | 550mm to 600mm |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor | No motor |
| Max flow rate | 30-35 person per minute |
| Arm length | 510mm |
| Working temperature |
-20°C~60°C |
Product Application
Three arm Tripod Turnstile is suitable for office building,residential area,school,hospital,government building and so on.It is widely uesed for access control,pedestrian management with IC/ID cards,barcode tickets,fingerprint/face recognition etc.It's main special function is anti-collision,you can even use your foot kick the arm,and the turnstile still can work very well,very good quality.
Product description:
1. Fingerprint and RFID Semi automatic bi-direction tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems;
4. They could be integrated with multiple devices like card and fingerprint readers.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.
