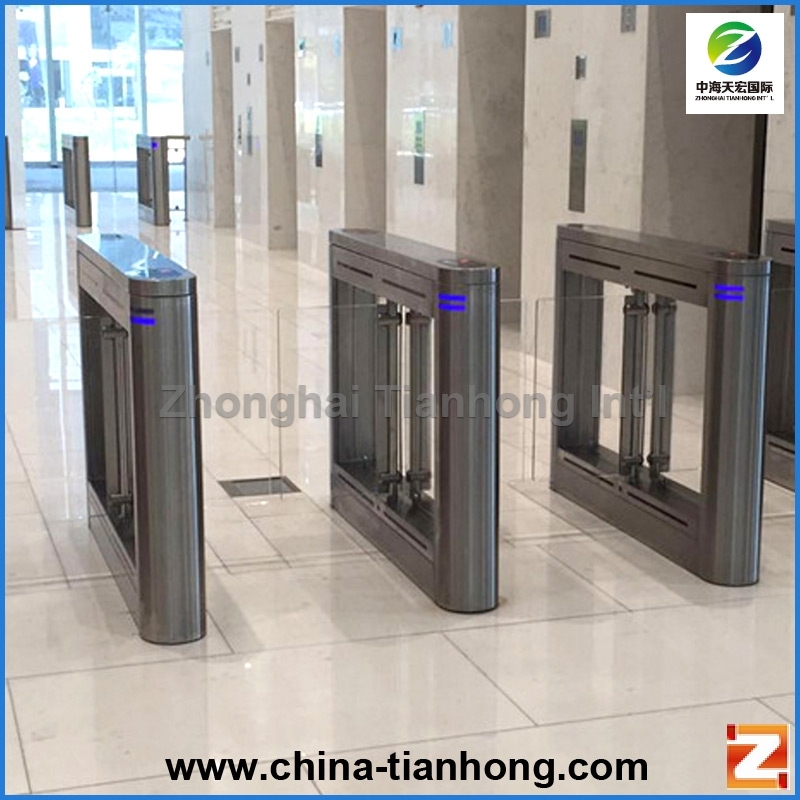

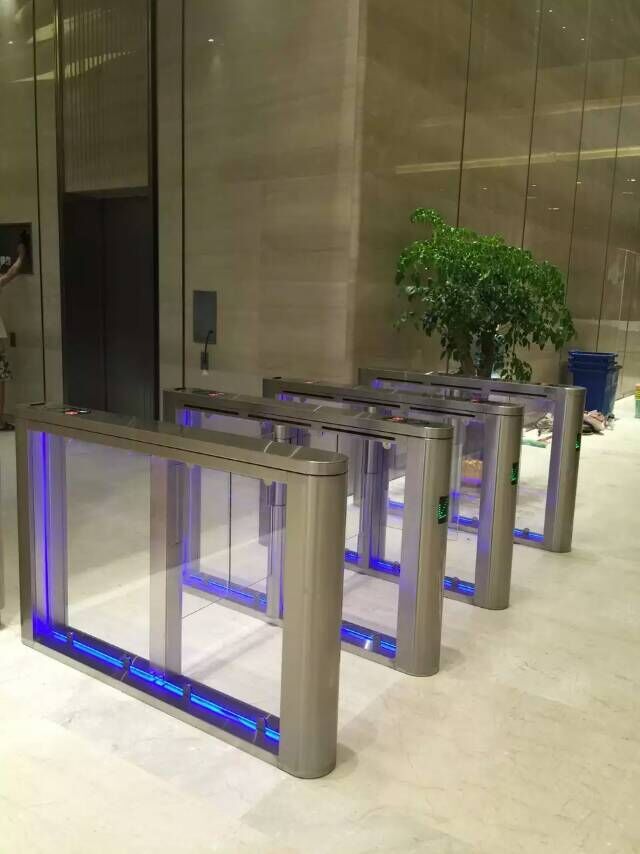

Stainless Steel Turnstile Speed Gate TH-SG307

Item No.: TH-SG307
This  is one of the new high-end hot on sale products from TIANHONG.With fine technology, comprehensive functions, and high reliability, it can be applied to high-level venues such as high-end communities, intelligent buildings, hotels, subway stations, a
INQUIRY
Description

This Fastlane Speed Gate Lanes has compact mechanical and electrical design, unique drive, and self-locking mechanism.it can be applied to high-level venues such as high-end communities, intelligent buildings, hotels, subway stations, and gyms.It can be integrated with a modern intelligent management system to realize intelligent management of access control.
This speed gate body material is 304 stainless steel which is anti-rust and durable and high resistance.

We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. We provide our customers both ODM & OEM services as per the customers' demands. Please inquiry us.



Technical Parameters


1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V
±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode: DC electric motor

6. Interface: 12V Dry Contact
7. Overall Dimension: 1500L x 180W x 1020H (mm)
8. Following Speed: 35 people/minute in normal mode, 50 people/minute in fast mode

9. Service Life: Five millions continuous rotation
10. Operation Direction: Single/bi-directional

11. Working Environment: Indoor
12. Lane Width: 500mm-550mm
13. Opening angle:90
±5°
14. Noise:≤50dB
15. Opening and Closing Time: 1 second

16. Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
