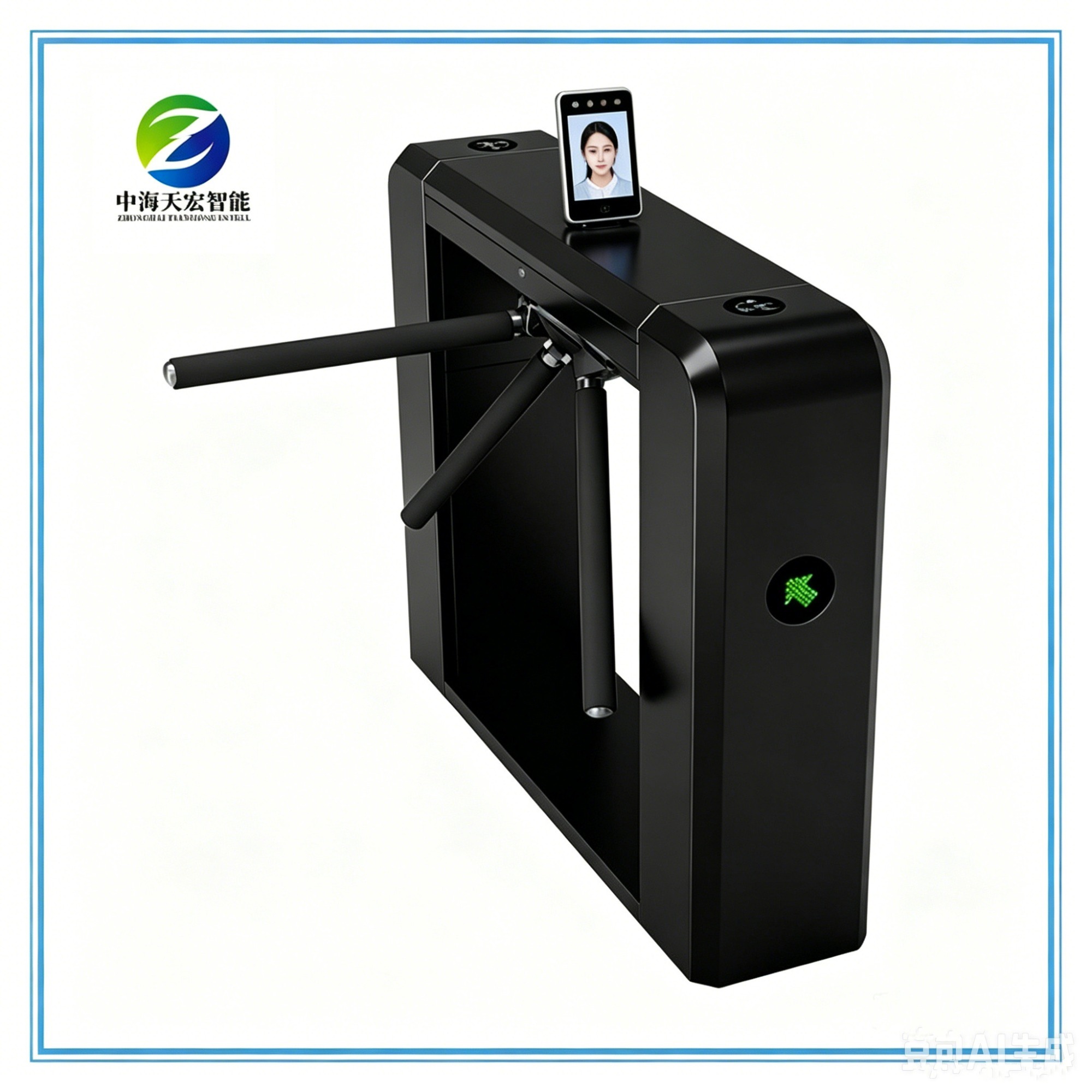

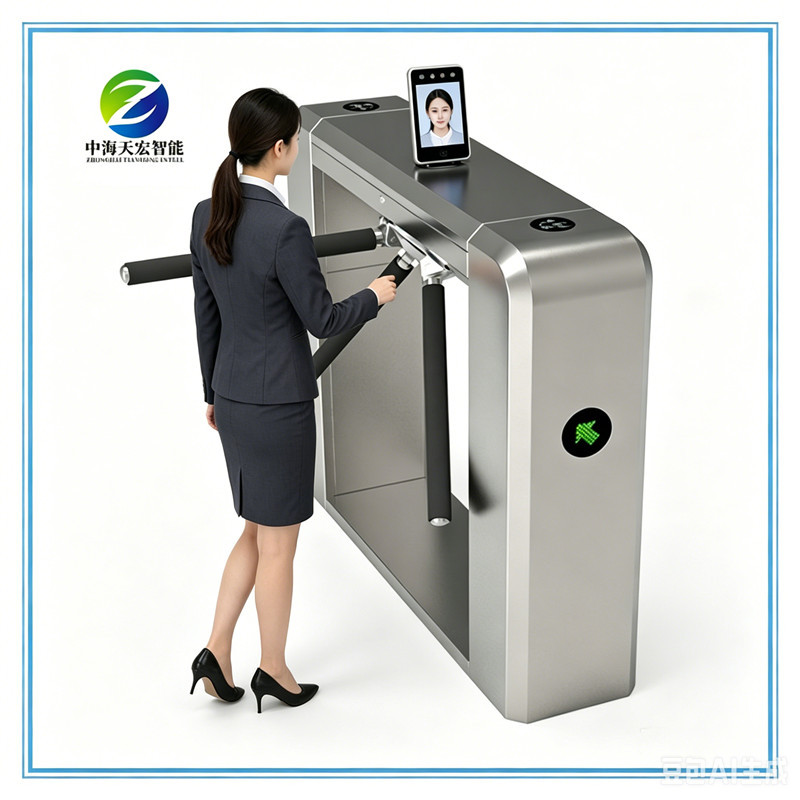

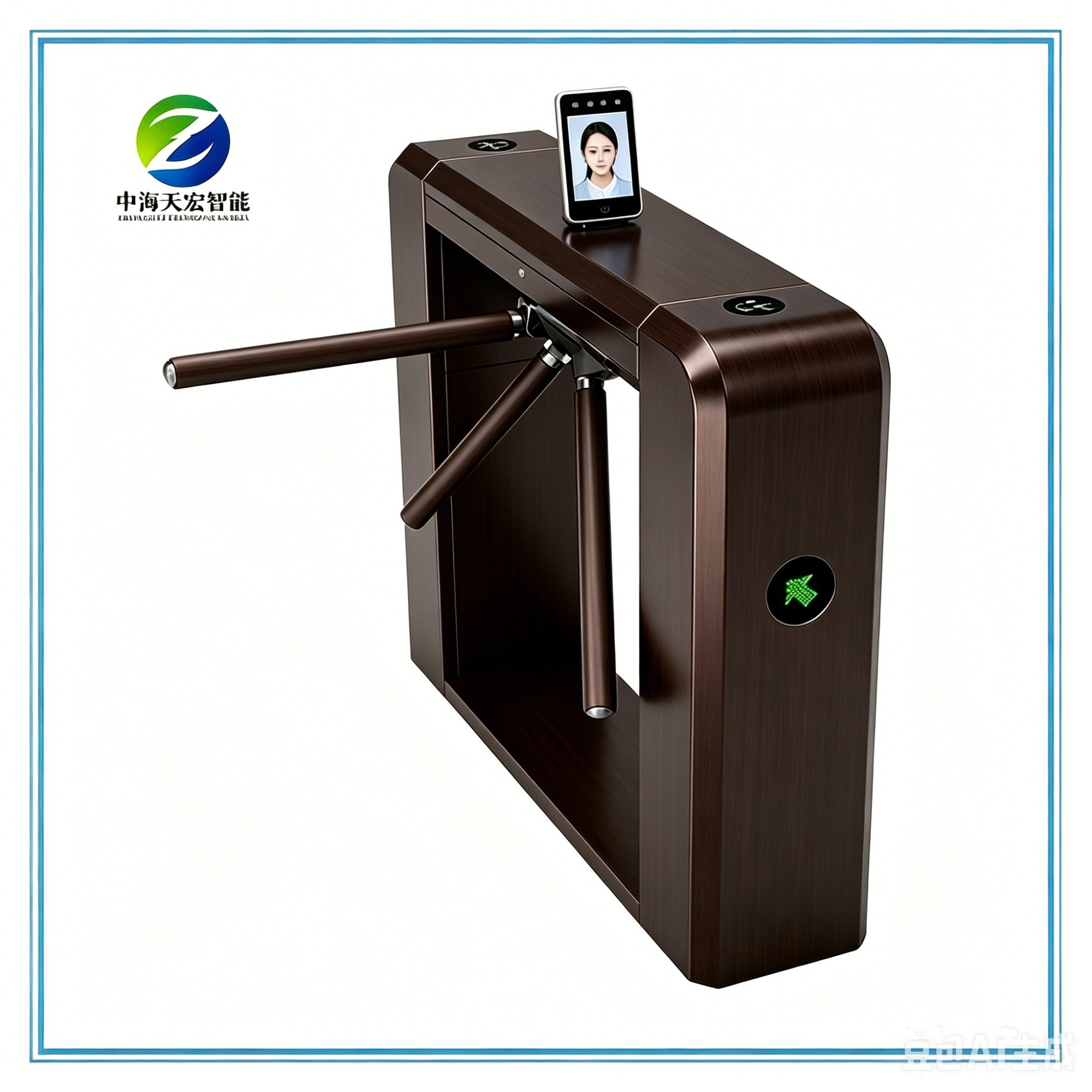

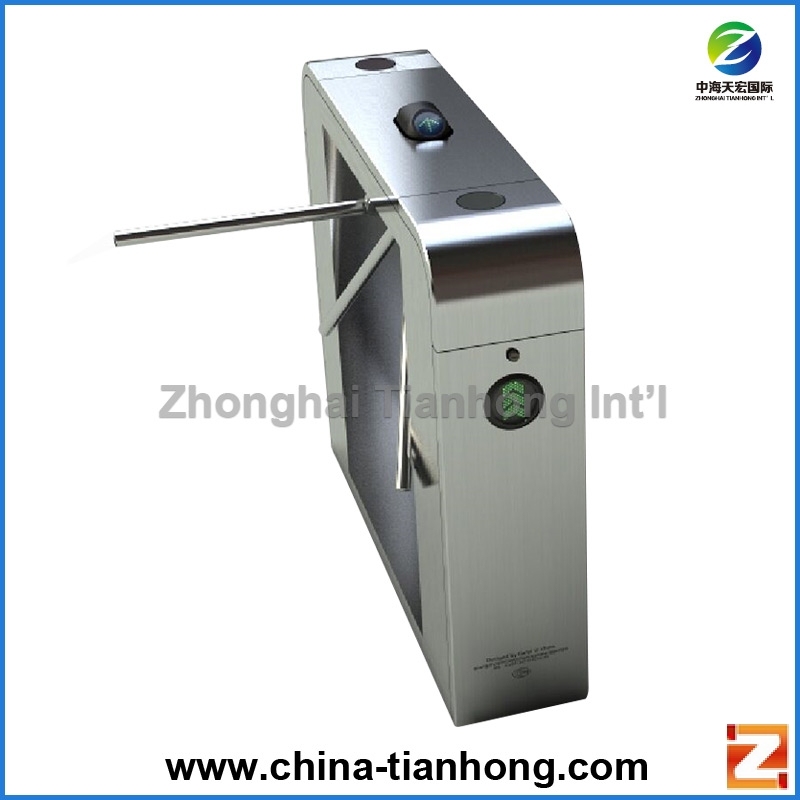

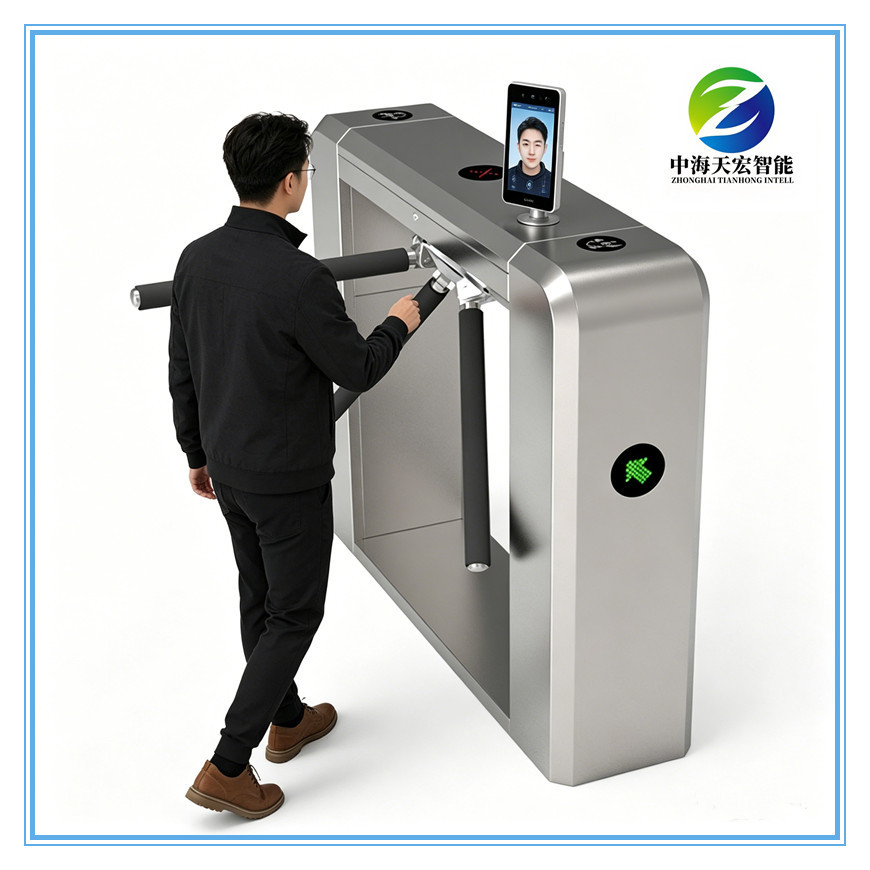

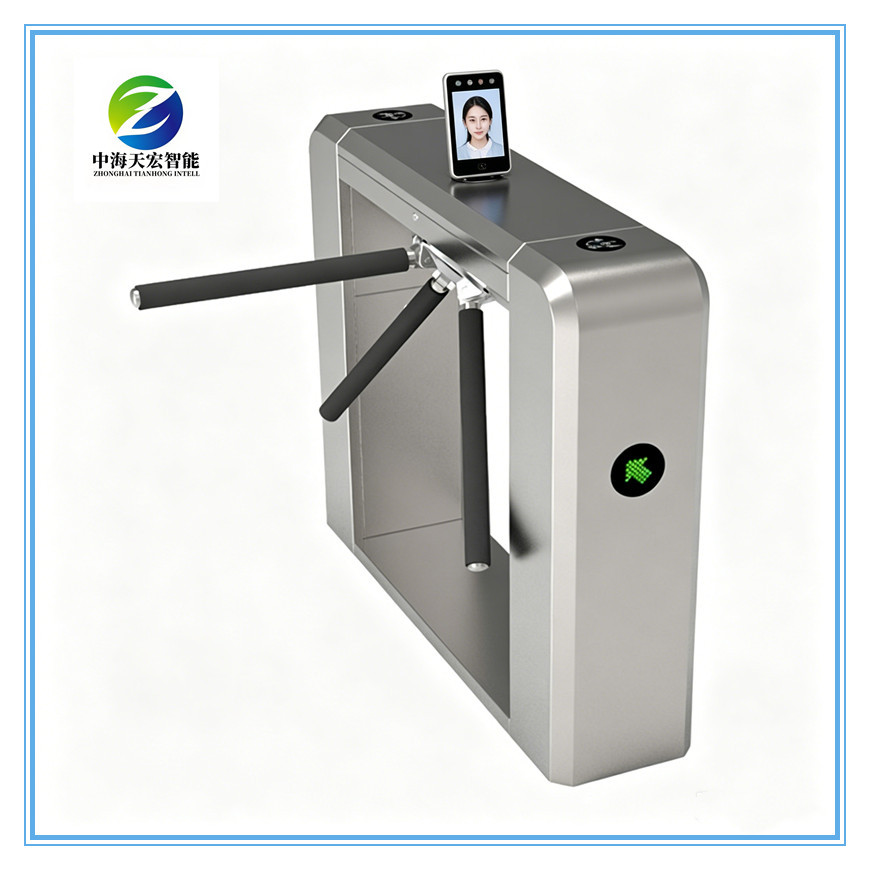

Tripod Turnstile TH-TT301

Item No.: TH-TT301

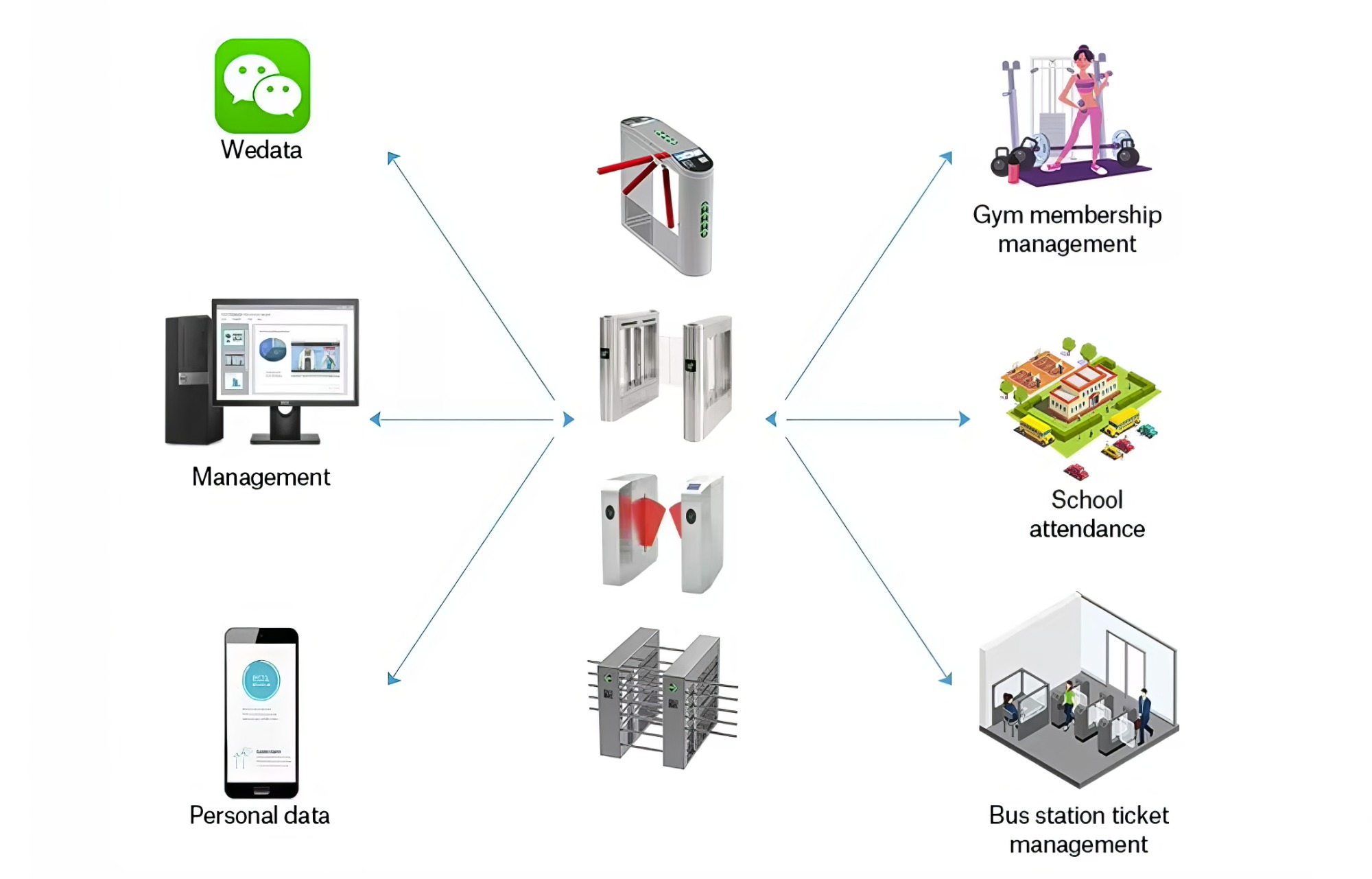

Applied to pedestrian passageway and automatic ticket sale and check management such as for government, enterprises and institutions, Intelligent Building, residential areas, scenic area venues, universities, kindergartens, station, leisure and entertainm
INQUIRY
Description

Product Description
The standard tripod turnstile series are made of 304 stainless steel, which is rustproof, durable, and can resist external destroy. Its structure of cuboid framework and the arm not only provide people with civilized and orderly transit manner but also prevent the illegal in and out effectively. Meanwhile, m the emergency, the arm will drop automatically. According to different control modules, this series can be divided into full-auto type, semi-auto type and manual type.Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access security.

Parameters
1. Protection: When the force exceeds the set value (such as 40 kg), arm can rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control Board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/Stainless steel/Cold sheet metal with paint
5. Drive Mode: Direct current motor
6. Anti-reverse: Anti-reverse function in order to ensure one card for one person
7. Temperature:-10
℃~60℃
8. Voltage:AC220V±10% 50Hz±4%
9. Humidity:5%~95%
10. Output:DC24V、DC12V、DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:
<50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width: 550~570mm

16. Interface Parameter: One Rs232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life: Ten years (non-consumable)
19. IP protection:IP42
20. Dimension: L*W*H: 1200 x 280x1040
(mm)
21. Net Weight: 100kg (Excluding the control part).
