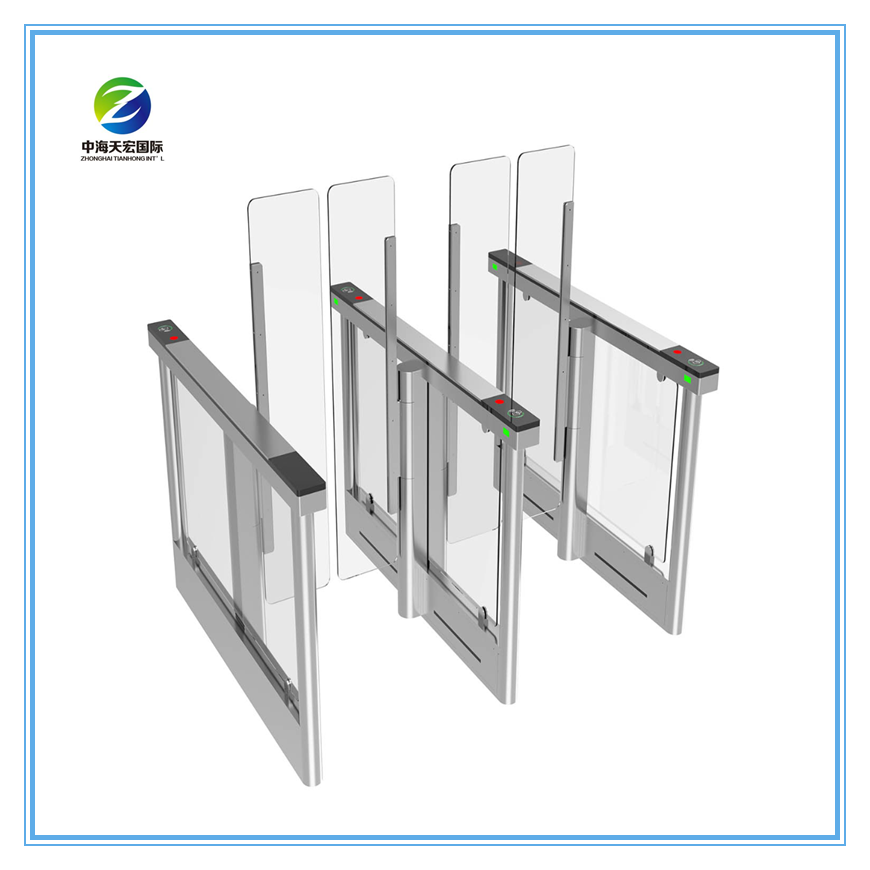

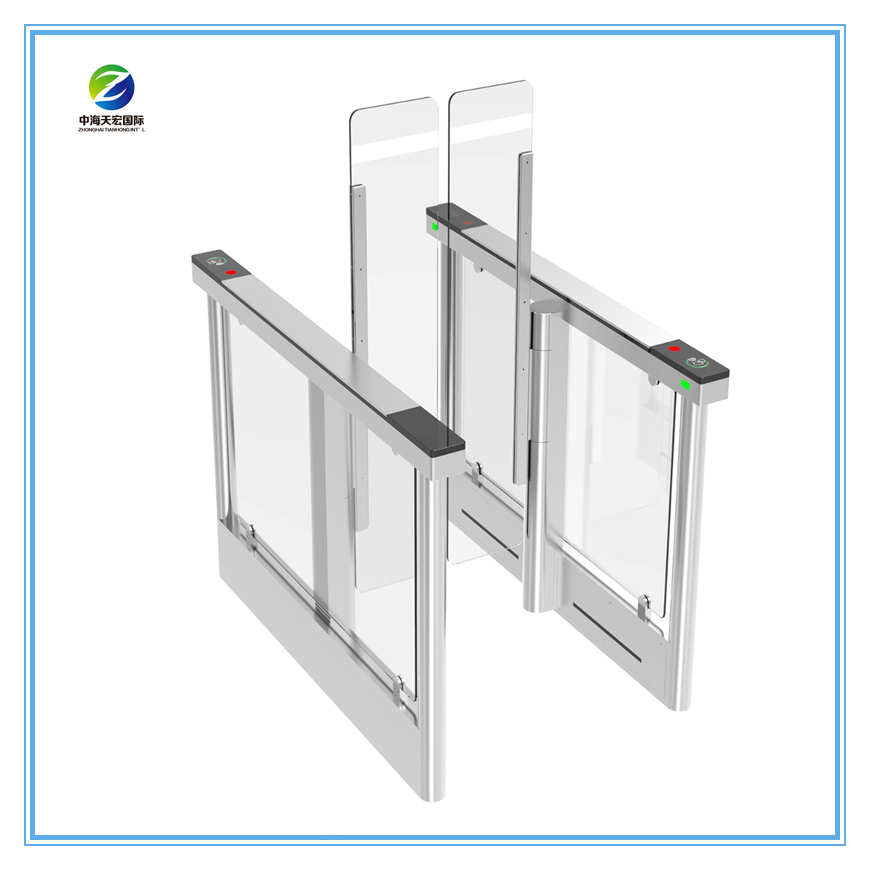

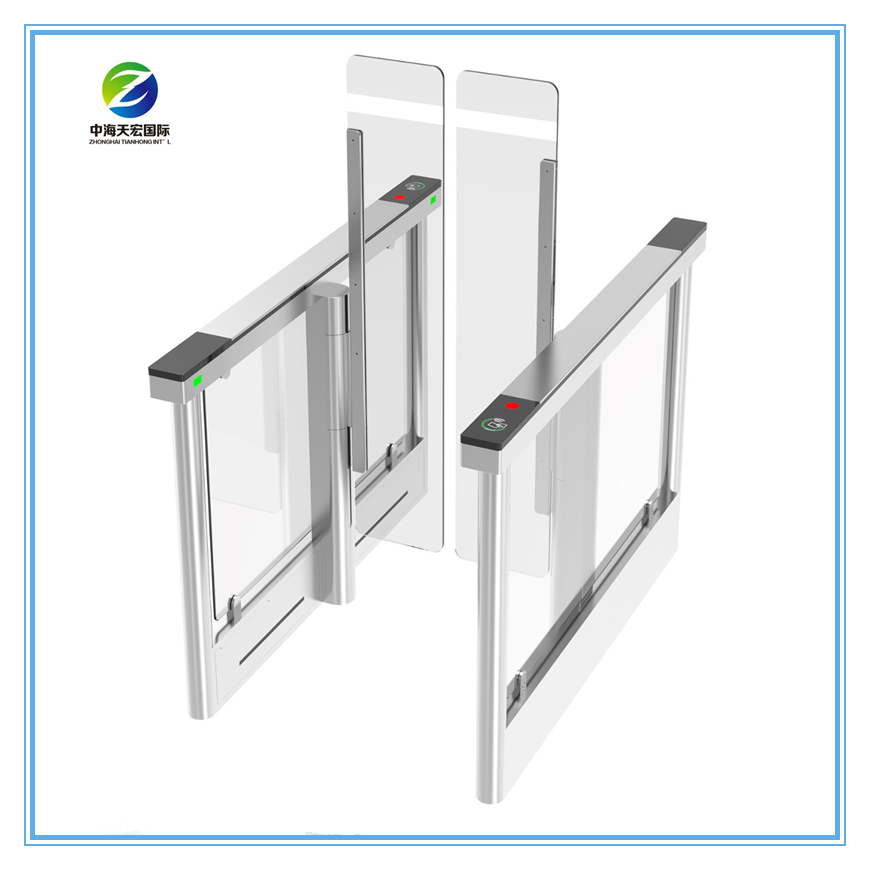

Optical Turnstiles Full Height Swing Gate Turnstile

Item No.: TH-SG618
This modern unique designed full height swing barrier gate turnstile features high-technology optical sensors and extra-tall glass (acrylic optional) barriers for higher security and reduced air contaminant exposure.
INQUIRY
Description
This modern unique designed speed gate features high-technology optical sensors and extra-tall glass (acrylic optional) barriers for higher security and reduced air contaminant exposure. It has a stainless steel body with glass (acrylic optional) sides and red/green indicator lights. The barriers move quickly and accurately, stably and quietly, with low-power consumption. It can be integrated with access control system with readers, including those for facial recognition, QR, NFC , RFID IC/ID contactless cards, fever detection and more.

This super high-panel swing gate turnstile SG618 housing is made of good quality & durable stainless steel. Its mechanism modules are used by our own designated designed DC brushless motor  and precise positioning encoder, so as to ensure the gates can move quickly and accurately, stably and quietly, with low-power consumption, energy conservation and environment protection. It is suitable for a commercial building, metro station, airport customs queue, exhibition hall, government building, financial institution, senior clubs and other high-end indoor environments.

Main Features
  • Extra Tall Glass Panel Swing Gate with Stainless Steel Pedestal
  • The Turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
  • Mechanical anti-clamping functions for protection.
  • The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
  • All electric modules are designed to operate under the safety voltage of 24V, and configured with a residual current protective device to effectively avoid electric shocks.

Technical Parameters
  • 1) Power voltage: AC100~240V, 50Hz
  • 2) Operation environment temperature: -15℃~ 65℃
  • 3) Relative humidity: less than 95% not condensed
  • 4) Passage width: 600-900mm
  • 5) Passing speed: 35-40 person/min
  • 6) Main-board voltage: 24VDC
  • 7) Max current: 5A
  • 8) Working Environment: Indoor
  • 9) Input port: dry contact signal
  • 10) Communications port: RS232/RS485 electric standard, communications range: ≤1200m.

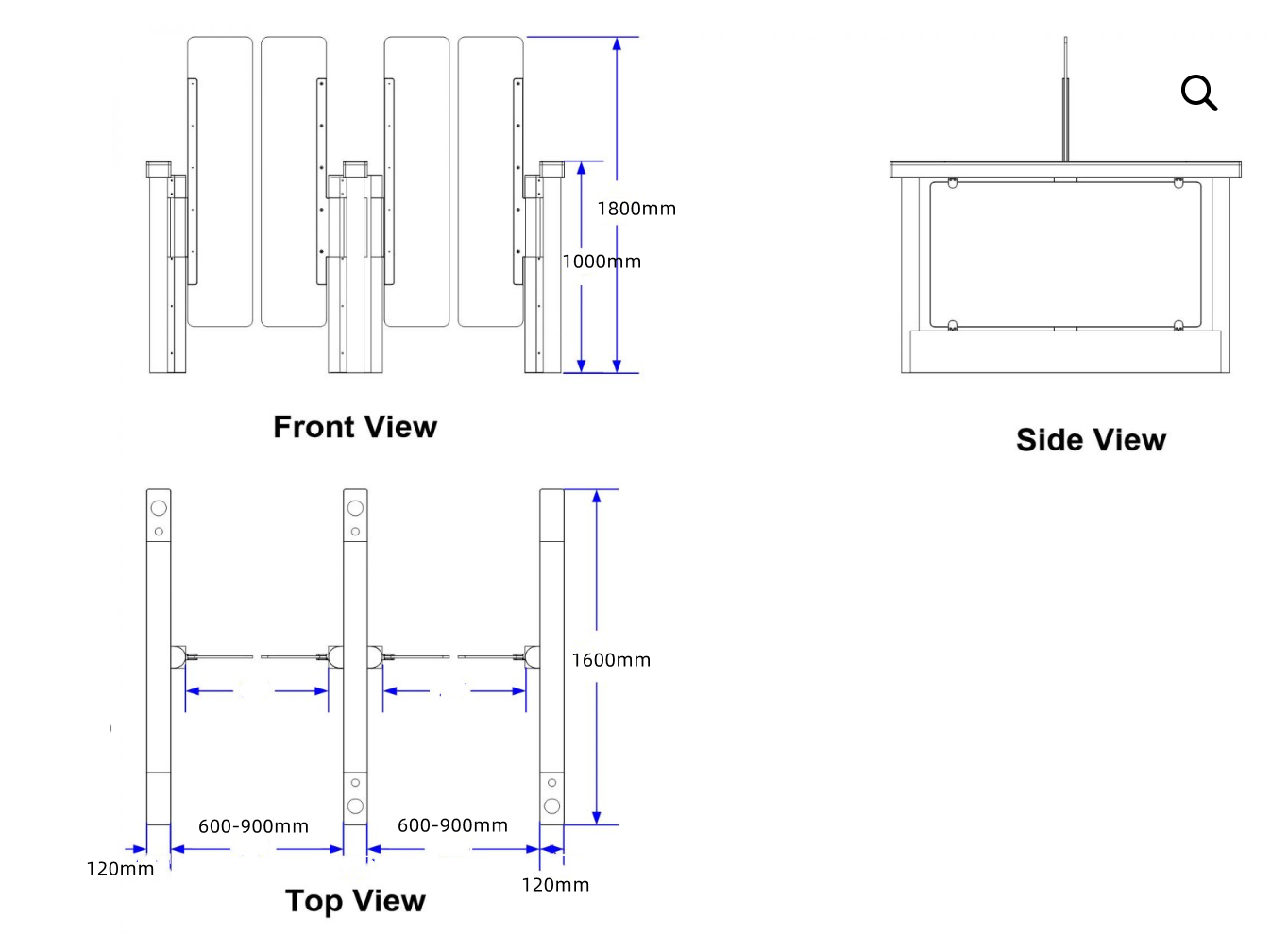

Product Size Drawing
