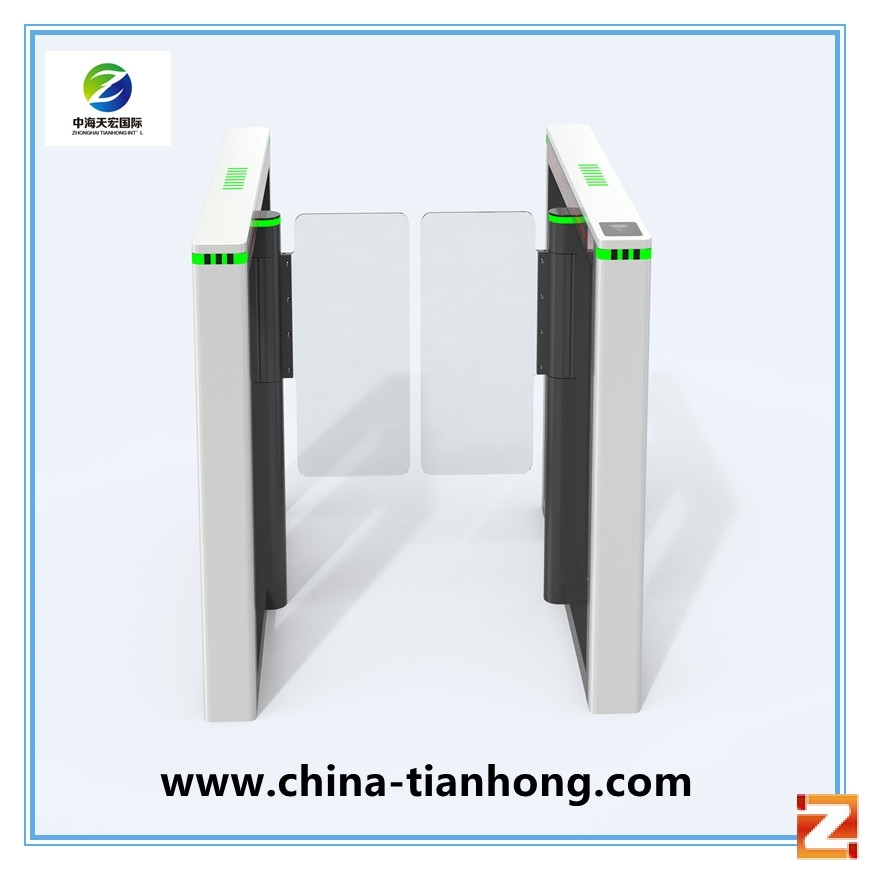

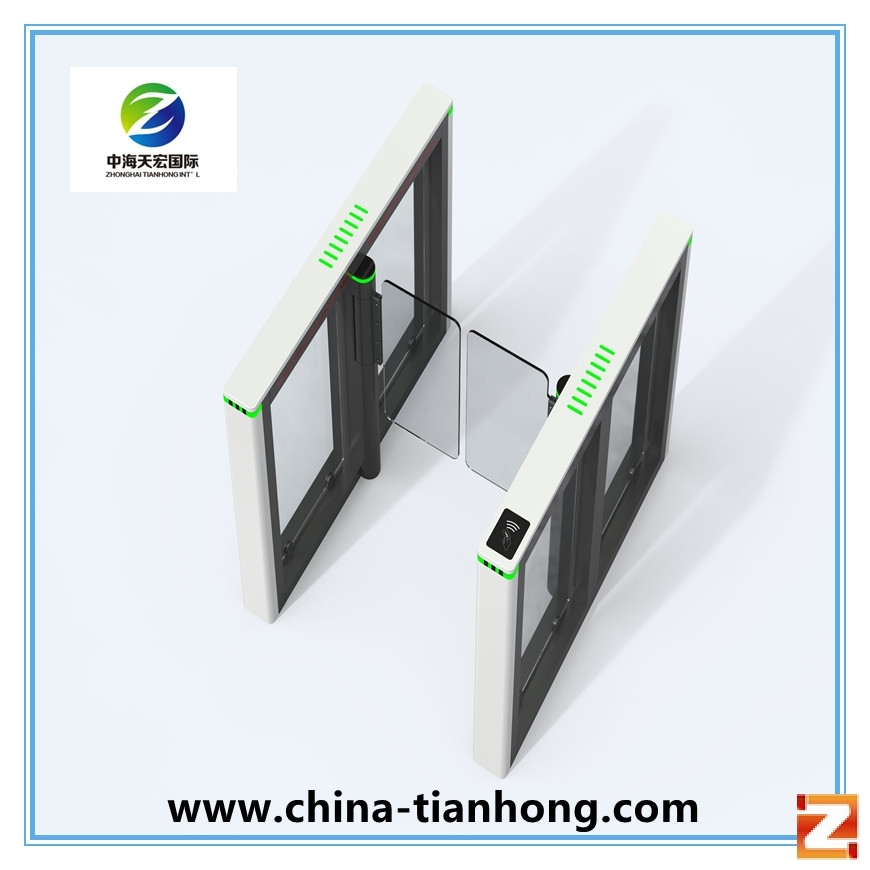

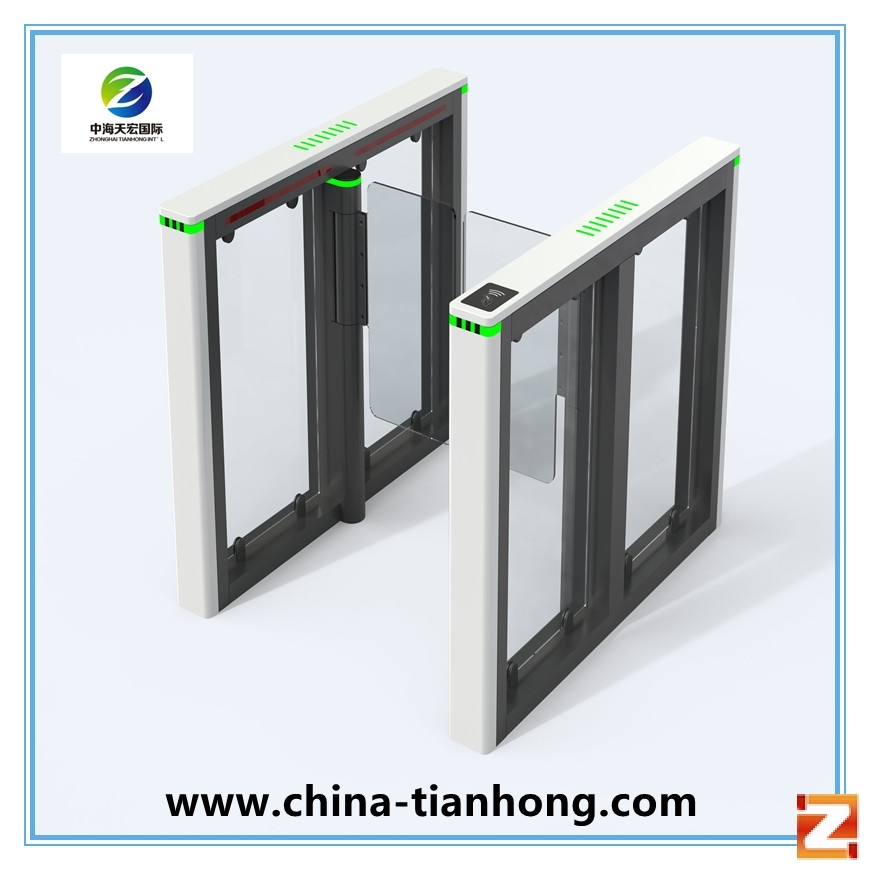

Fastlane Slim Super Speed Gate Turnstile

Item No.: TH-SG528
This fastlane slim super speed gate is a high-end intelligent swing turnstile gate product from Tianhong, which can fully detect the passing situation of the human body.
INQUIRY
Description
With fine technology, comprehensive functions, and high reliability, this fastlane slim super speed gate can be applied to high-level venues such as high-end communities, intelligent buildings, hotels, clubs, subway stations, and gyms.

Tianhong can customize speed gates according to your requirements. We also provide biometric devices, such as IC/ID card reader, fingerprint scanner, QR code scanner, face recognition camera, and so on.

Our swing guardrail can be integrated with a modern intelligent management system to realize intelligent management of access control.

Product Advantages:



Compact mechanical and electrical design, unique drive, and self-locking mechanism

Automatic fault detection

The input interface can be used for dry contact and switch signal connection

Adjustable automatic delay closing

Infrared photocell for safe passage

Unauthorized entry and no entry alarms

Power on and power off automatically

Free access when power off

Adjustable entry direction

Provide emergency interface

Traffic lights for passengers to enter

Technical Parameter:



  1. Size: 1400x140x980mm (can be customized)
  2. Supply Voltage: 110V-240V, 50HZ/60Hz
  3. Working Voltage: DC24V
  4. Relative humidity: ≤95%, No Condensation
  5. Unlock time: 0.2s
  6. Material: Galvanized Steel Sheet with powder coated
  7. Arms material: 10mm acrylic
  8. Motor: Brushless Servo Motor
  9. Passage width: 600mm standard 900mm handicapped
  10. Working temperature: -25 ~ 70℃
  11. Working environment: Indoor and outdoor
  12. Pass rate: 35p/min
  13. Max power consumption: 120W
  14. Arm Height: From ground 1300mm customized
  15. Communication Interface: RS485/Relay signal
  16. MCBF: 5,000,000 Cycles
  17. Application: Airports, Clubs, Office entrances, Hotels, Government Halls, etc
