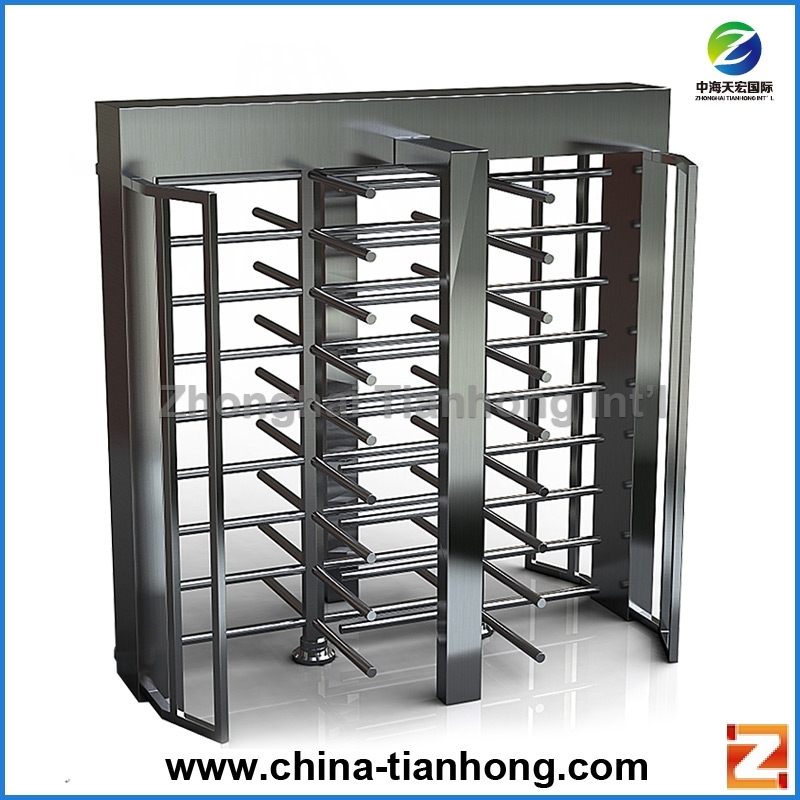

Construction Turnstiles Double Full Height Turnstile

Item No.: TH-FHT206-2
Tianhong High-Security turnstiles are engineered to meet the most demanding security and control requirements and are ideal for tight-space situations where large numbers of people need to be authenticated for entry. The double lanes are essentially two s
INQUIRY
Description

Construction turnstile is a kind of pedestrian turnstile gate that is used for construction site personnel access control management, which is the main control equipment of the pedestrian traffic access control on the construction site. At the same time, according to the environmental requirements of the construction site, the construction turnstiles need to have good waterproof and lighting performance and realize the functions of access control and attendance, on-site patrol, meeting sign in, violation management, statistical report, and system management through face recognition, RFID card, etc.

The construction site turnstile is generally a tripod turnstile gate and a full height turnstile, because its design is very suitable for the construction site. The full height turnstile gate has higher safety performance, the turnstile gate on the construction site can not only prevent the entry and exit of foreign personnel, but also be equipped with an attendance system to record the attendance status of workers. The use of construction turnstiles can make the flow of people on the construction site pass through the channel orderly.

The construction turnstiles have the function of preventing human damage; The construction turnstiles are used to protect the safety of personnel and property; Ensure that the property on the construction site is not easy to be lost.

TIANHONG  High-Security turnstiles are engineered to meet the most demanding security and control requirements and are ideal for tight-space situations where large numbers of people need to be authenticated for entry. The double lanes are essentially two single turnstiles in one frame which improves efficiency and saves significant space.

We provide both OEM & ODM services.
For pricing & designing or other more information, please feel free to iqnuiry us.


Technical Parameters

Cold-rolled steel plate or 304 stainless steel casing optional.
Width of passage: 500~600mm
Following Speed: ≥ 25 people/minute
Noise: ≤ 65dB
Working state: Single or bi-direction
Status Indication: Allow passing through / Forbidden
Close and Open time: 1 Second
Power supply: Input AC220V (adjustable)
Optional: DC24V± 10% 3A; DC12V± 10% 3A
Communication Interface: Two Card reader signals
Working environment: Indoor, outdoor
Working temperature 0degree-65degree ( Customized available)
Humidity: 5%-90%
Maintenance port: 1unit
Service Life: Five million contiguous opening and closing of barrier panel.
Dimension: 2200L X 1400W X2300H ( can be customized)
Net Weight: 150KG


Advantages
1. Cold-rolled steel plate or 304 stainless steel casing optional.
2. Directional LED Optical Signals: Green Arrow or RED Cross signage.
3. Mechanism is specially processed, more durable
4. Ensures rapid, efficient & safe access control.
5. Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
6. PhotoElectric Beams installed standard for all models.
