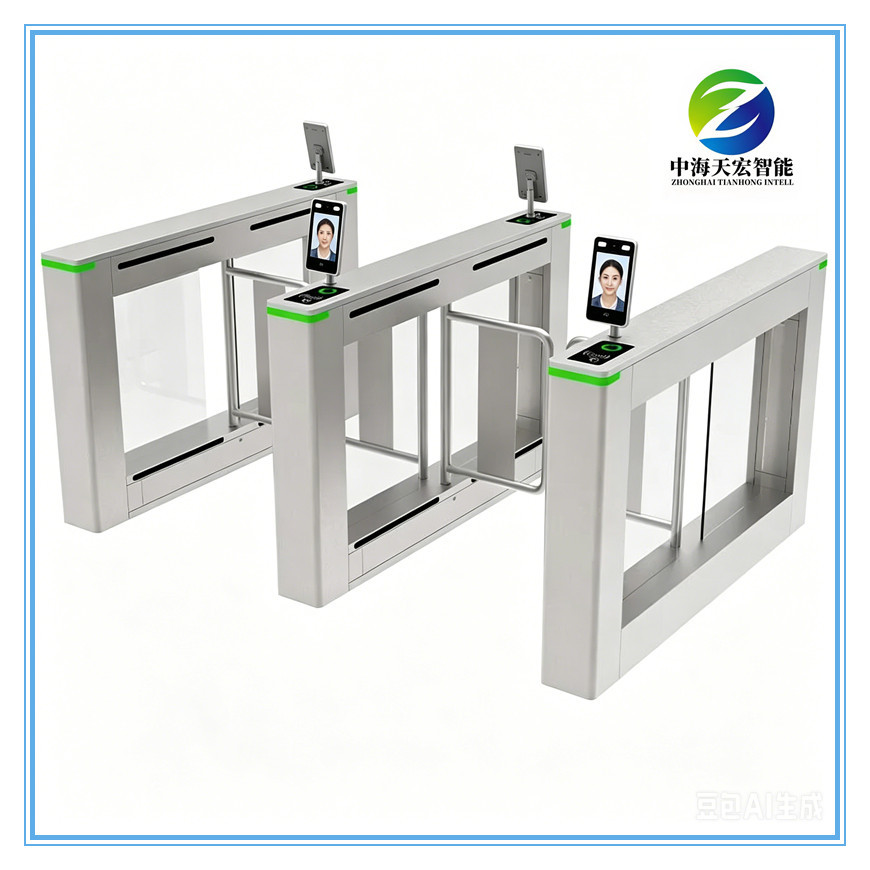

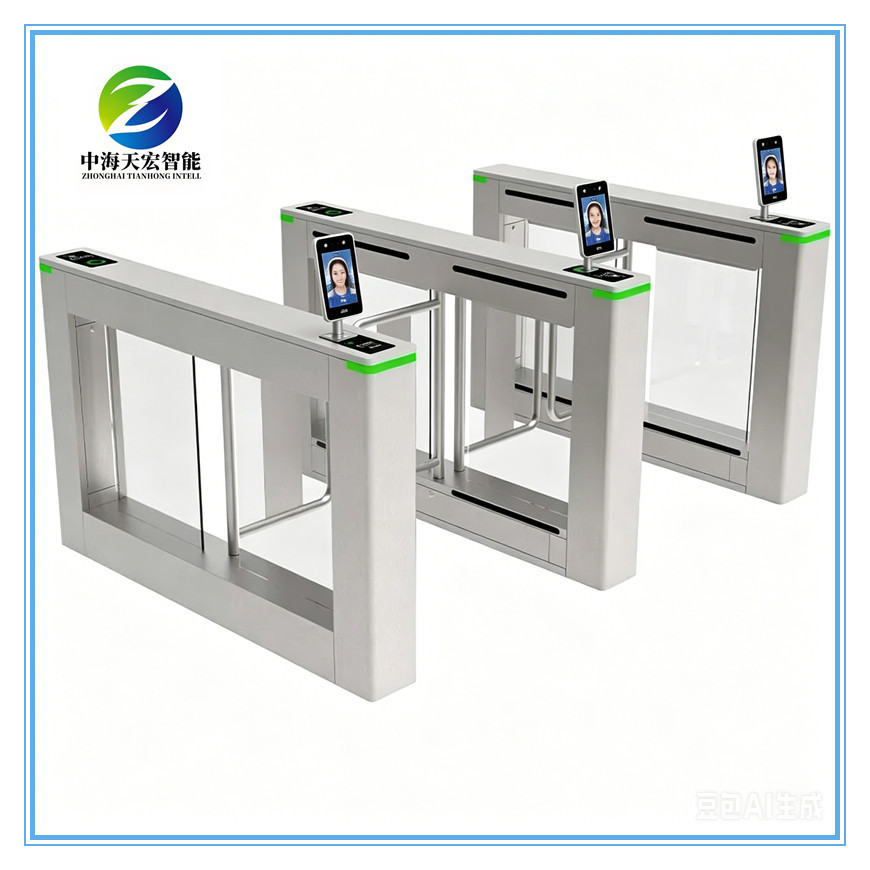

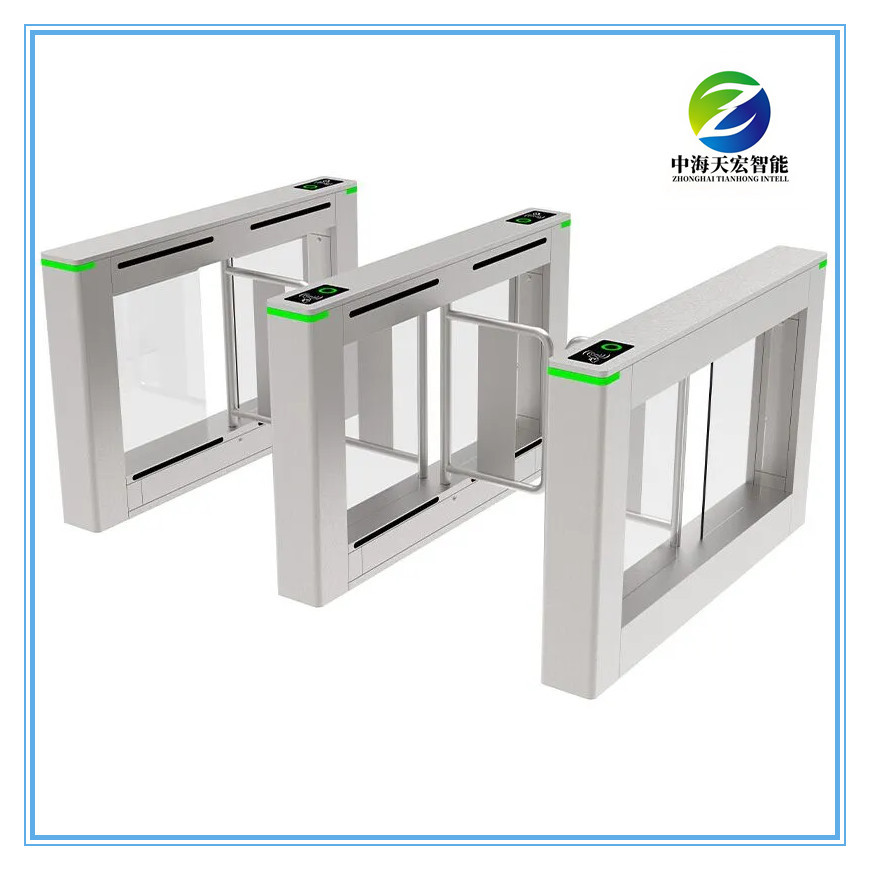

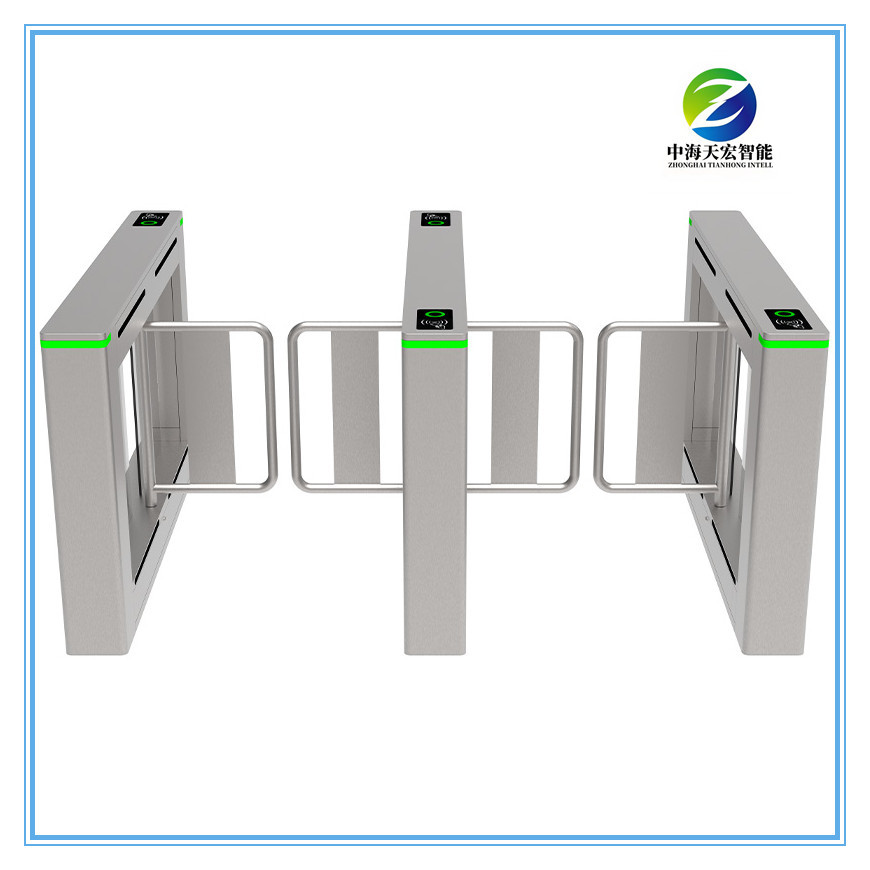

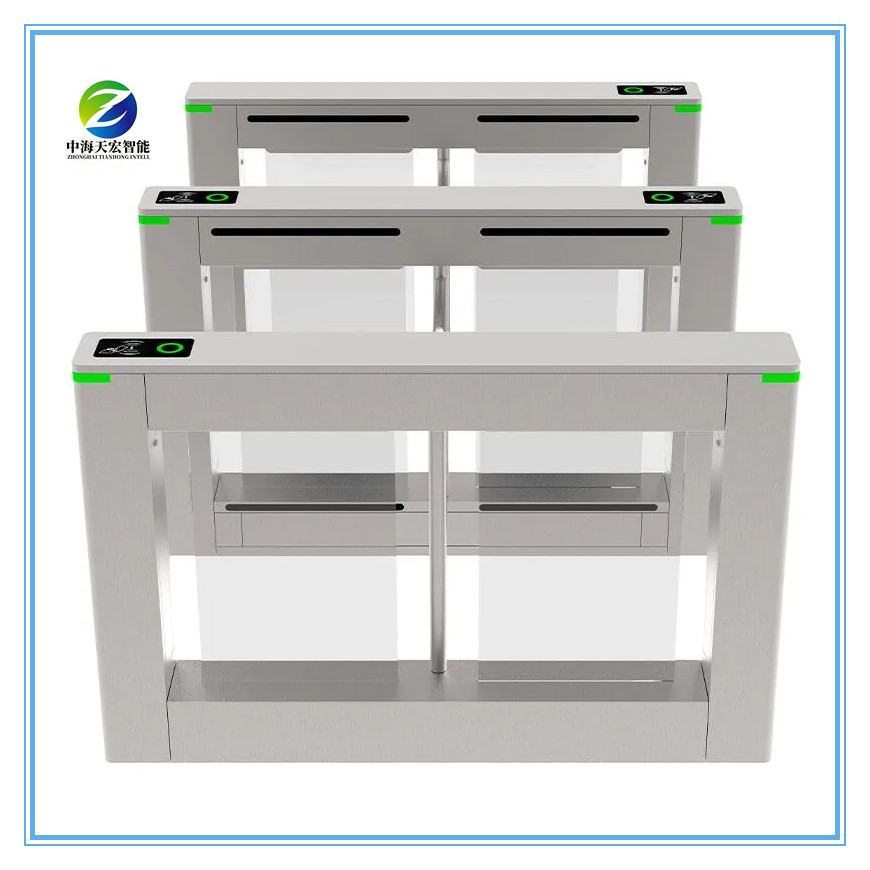

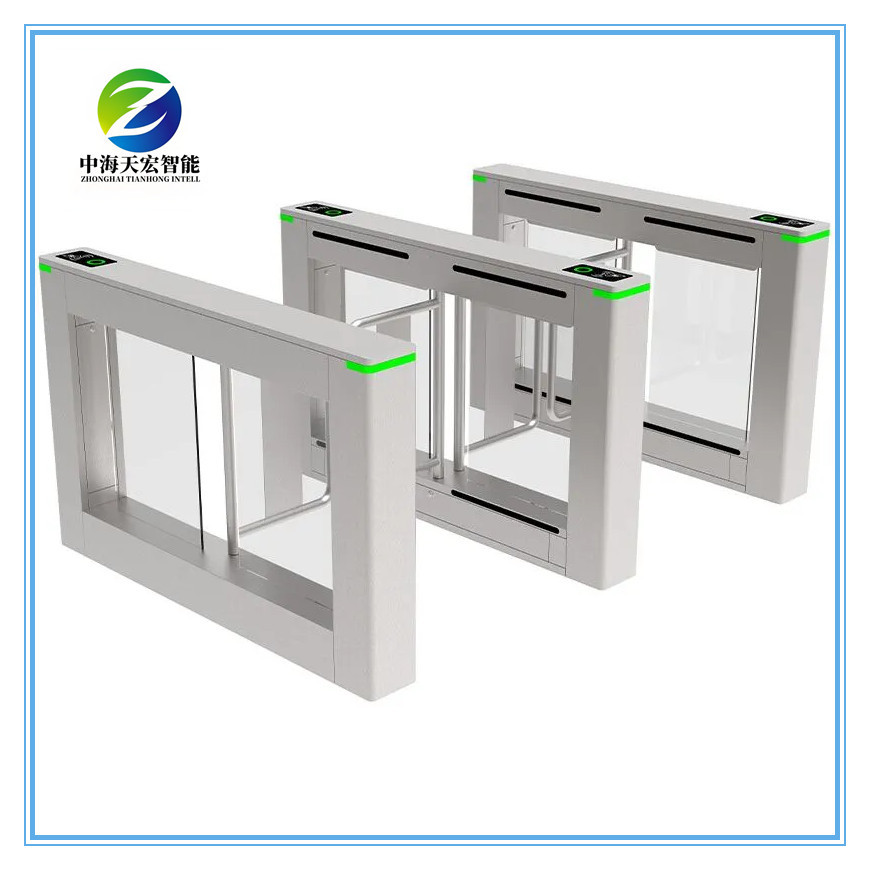

Pedestrian Access Control Swing Barrier Turnstile with Integrated Facial Recognition System

No.TH-SBG328

This integrated facial recognition QR swing barrier turnstile provides secure, fast pedestrian access control, ideal for commercial buildings, offices, and public facilities. It delivers reliable, biometric verification and efficient passage.

Download

View all downloads

Description

This integrated facial & QR recognition swing barrier turnstile is a high-performance pedestrian access control solution engineered for modern security needs.

Built with durable stainless steel, it ensures long-term reliability in high-traffic environments. The advanced facial recognition module delivers fast, accurate biometric verification, supporting quick and secure passage while preventing unauthorized access. Its sleek, modern design seamlessly blends with commercial buildings, office complexes, schools, and public facilities.

Equipped with anti-tailgating and anti-pinch safety features, it guarantees user safety and operational stability. The system supports multiple verification modes, including facial recognition, QR code, and card swiping, offering flexible access management options. It features a high-speed opening mechanism to maximize pedestrian flow efficiency, reducing congestion during peak hours.The turnstile also supports remote management and real-time data tracking, enabling administrators to monitor access records and system status conveniently.

With low power consumption and easy maintenance, it is a cost-effective choice for long-term use. Its intelligent design includes automatic reset and alarm functions to handle abnormal situations promptly.

The system is compatible with various access control platforms, allowing seamless integration into existing security infrastructures. Ideal for both indoor and outdoor installations, it offers robust performance in diverse environmental conditions, making it a versatile and reliable security solution for any facility.

Technical Parameters

Item No.	Description	Specification
1	Overall Size	L1400 X W180 X H1000 mm (Customizable)
2	Standard Lane Width	600 mm (Standard) / 900 mm (Handicapped Access)
3	Arm Material	SUS304 Stainless Steel
4	Passing Speed	Up to 40 persons per minute
5	Power Supply	AC 110V/220V, 50/60 Hz
6	Brushless Motor Power	40 W
7	Gate Open Signal	Dry Contact / Relay Output
8	Driving Motor Voltage	DC 24 V
9	Maximum Lane Width	1600 mm (Customizable)
10	Housing Material	SUS304 Stainless Steel
11	Working Environment	Indoor / Outdoor (IP54 optional)
12	Access Control Interface	RS485 / TCP/IP / Wiegand
13	Safety Features	Anti-tailgating, Anti-pinch, Auto-reset, Alarm
14	Supported Verification Modes	Facial Recognition / QR Code / IC Card / ID Card
15	Working Temperature Range	-20°C ~ +60°C
16	MTBF (Mean Time Between Failures)	≥ 5,000,000 operations
