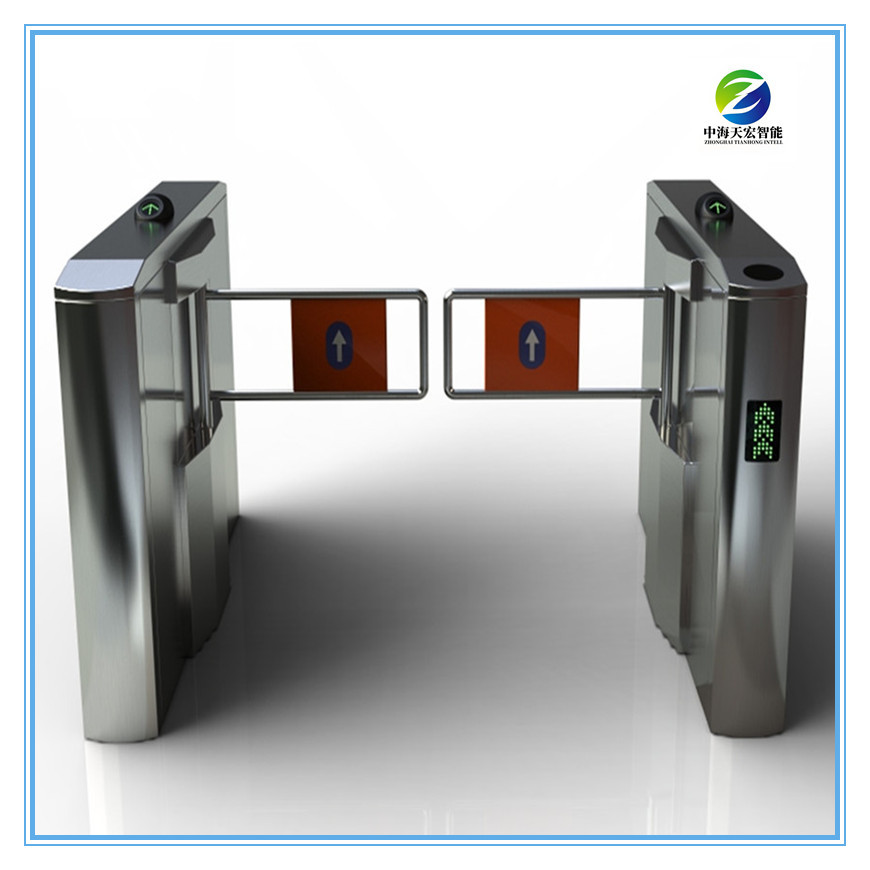

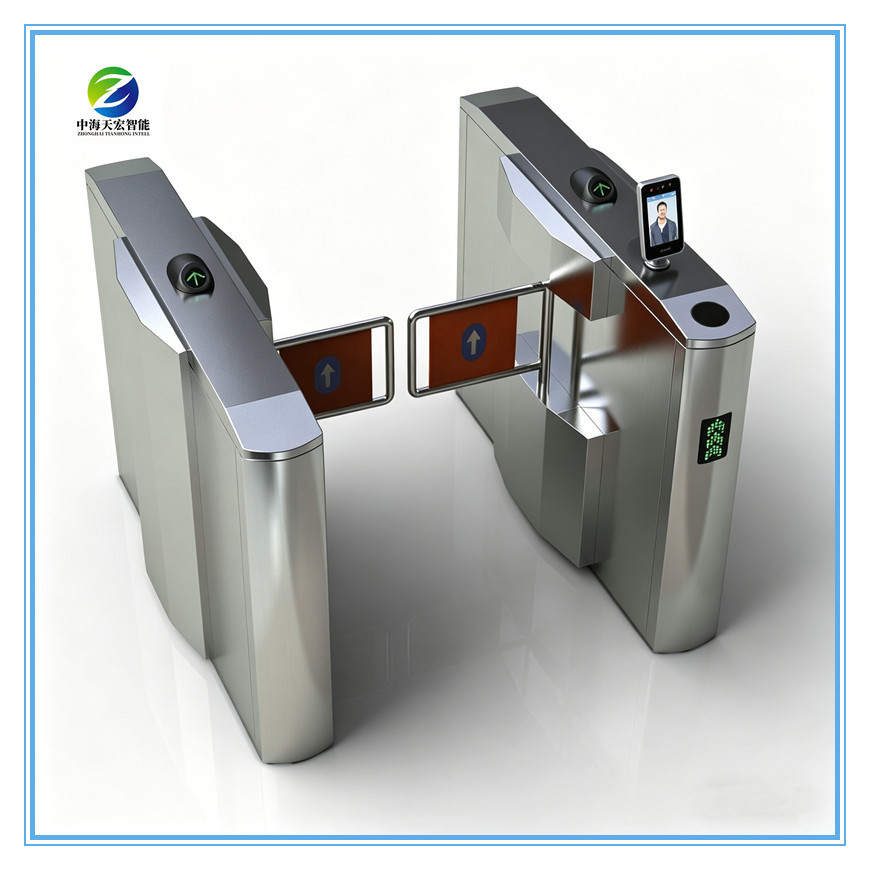

The high-end swing gate model SBG403 is independently developed and manufactured by Zhonghai Tianhong. It supports full integration of multiple mainstream recognition methods, including facial recognition, QR, fingerprint recognition, palm vein recognition and all types of RFID card reading functions.

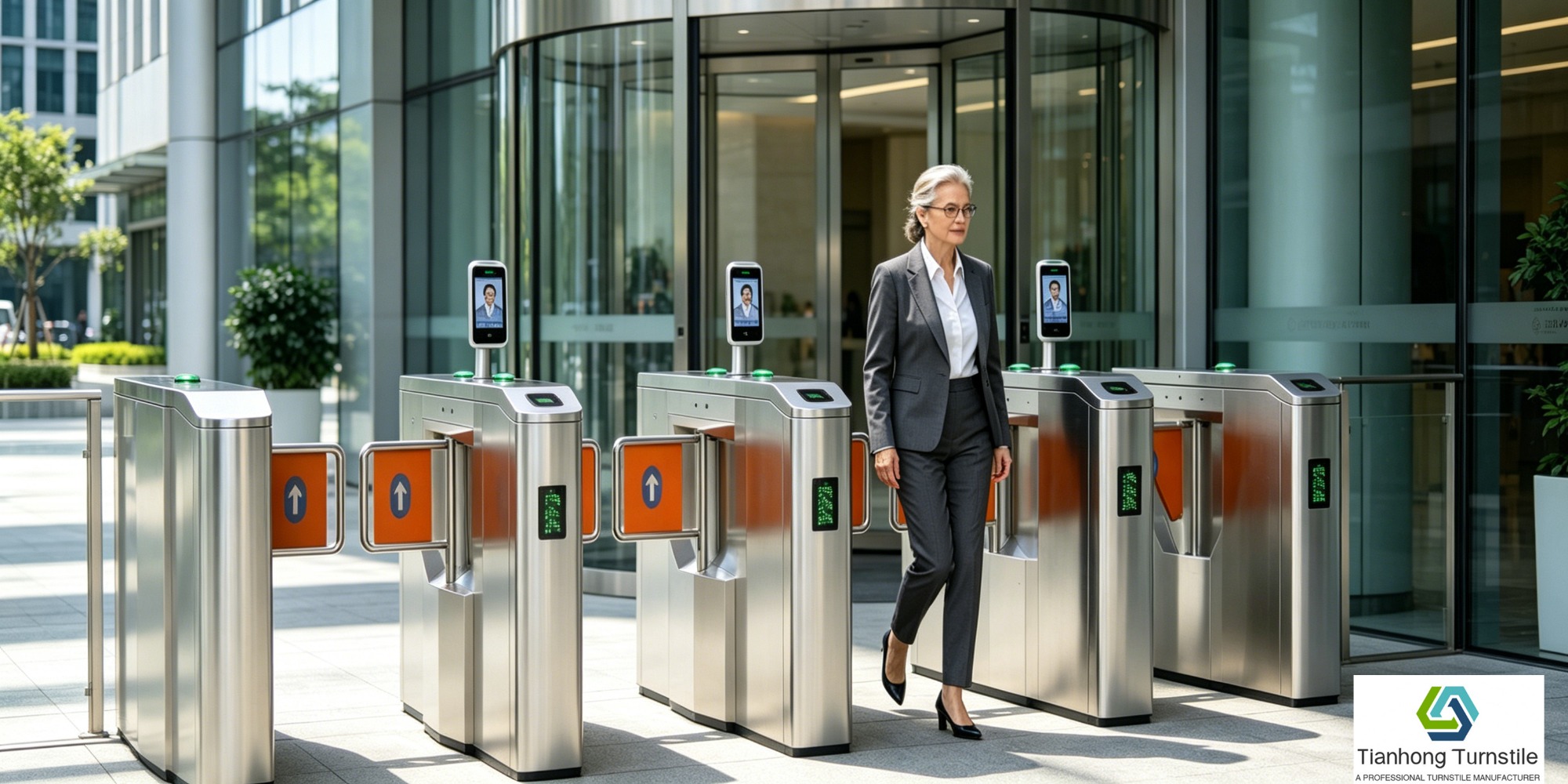

Featuring a sleek, streamlined and modern exclusive appearance design, it delivers stable operation, precise swing control and excellent anti-collision performance. With reliable quality, durable structure and elegant aesthetic, this swing gate has won high recognition and great popularity among global purchasers, widely applied in office buildings, industrial parks, commercial complexes and high-end residential communities worldwide.
Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single passageway 40W; dynamic state: single passageway 120W
3. Power Input:AC220V±10%，50HZ±4%
4. Output:DC5V、DC12V、AC24V
5. Drive Mode: DC electric motor
6. Structure: Frame structure/stainless steel/cold sheet metal with paint
7. Overall Dimension: Single core: 1300L x 308W x 990H (mm); Double cores: 1300L x 338W x 990H (mm)
8. Speed:≥20 people/min.
9. Service Life::Continuously run more than 300 million
10. Operation Direction: Single/bi-directional
11. Working Environment: Indoor, outdoor (with canopy)
12. Lane Width:≤1200mm
13. Humidity:5％~95％
14. Noise:≤50dB
15. Maintenance Port: 2 units
16. Net weight: 120KG (without control device)
