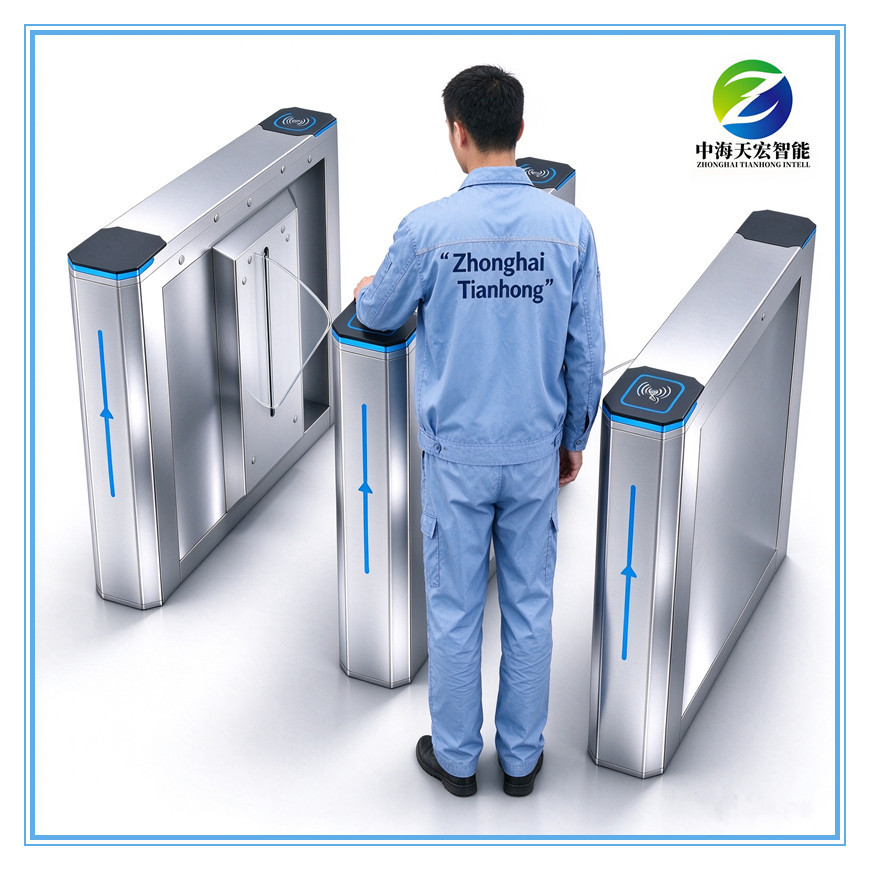

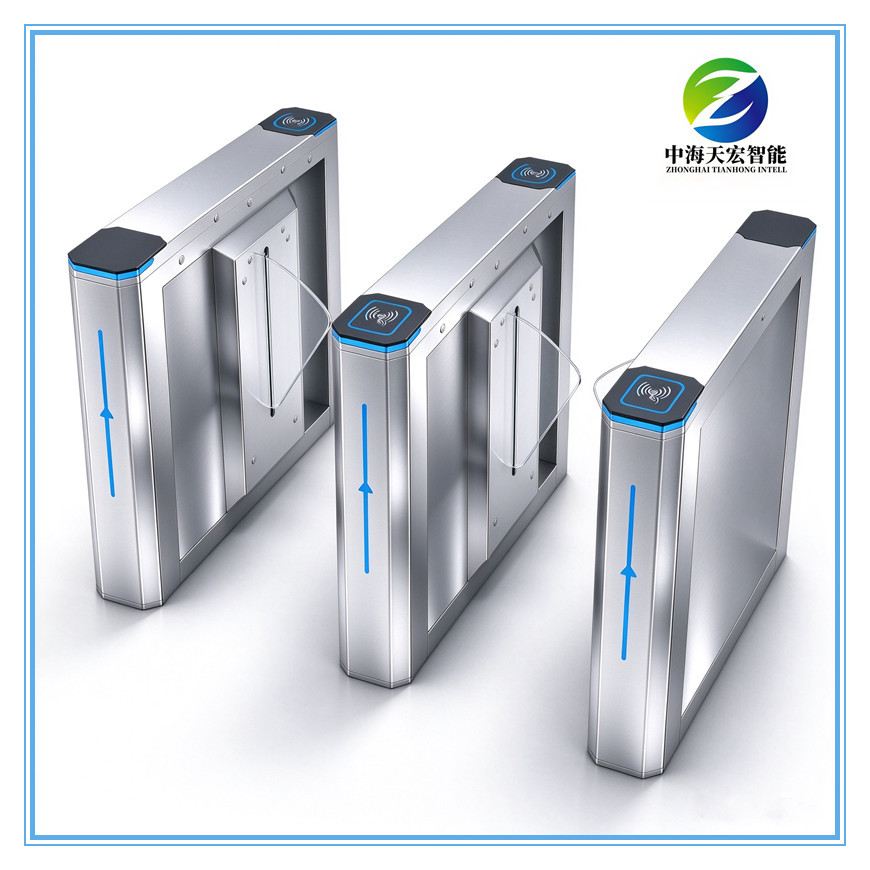

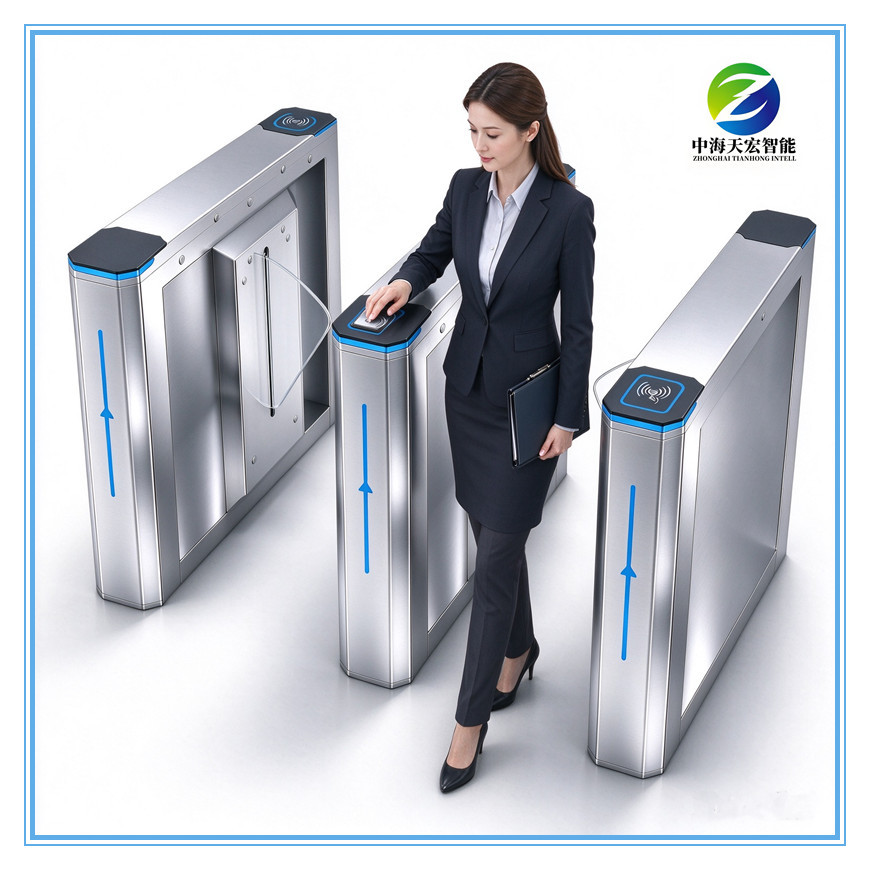

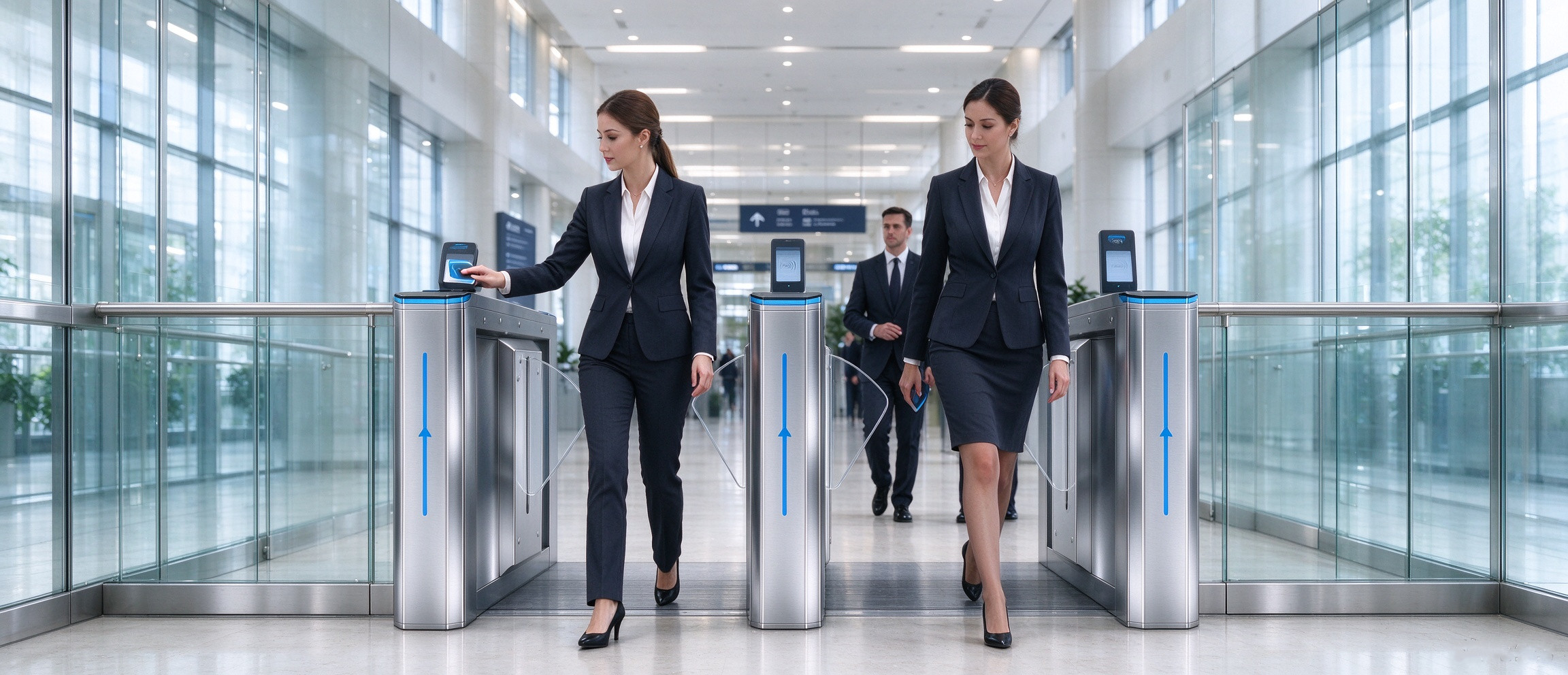

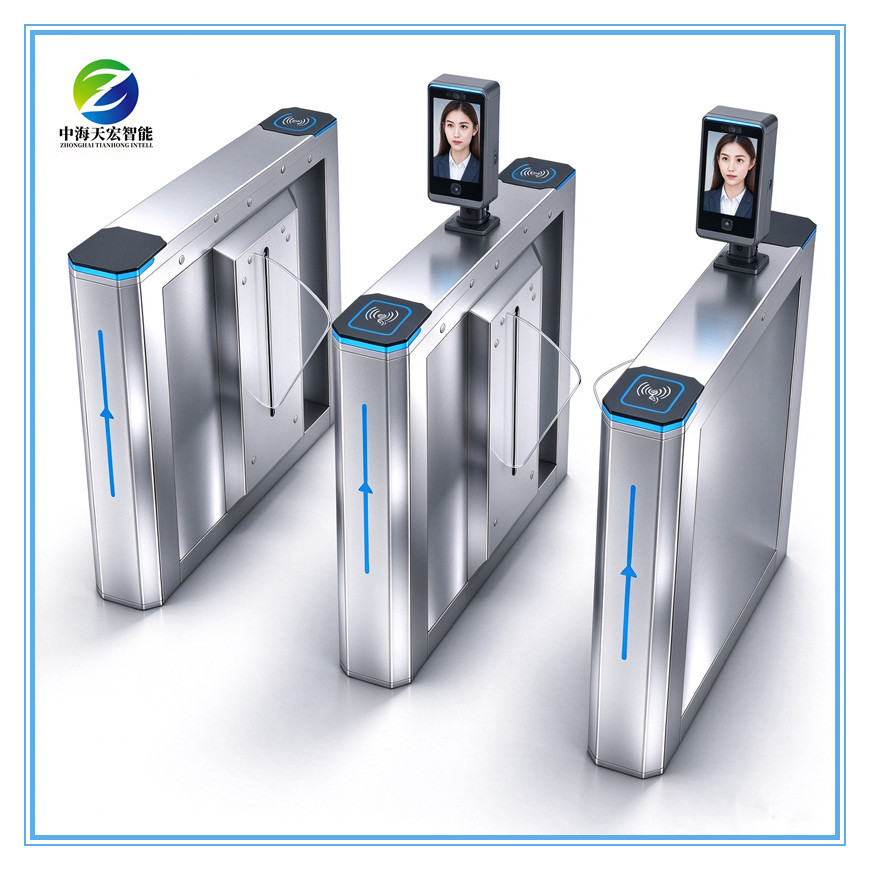

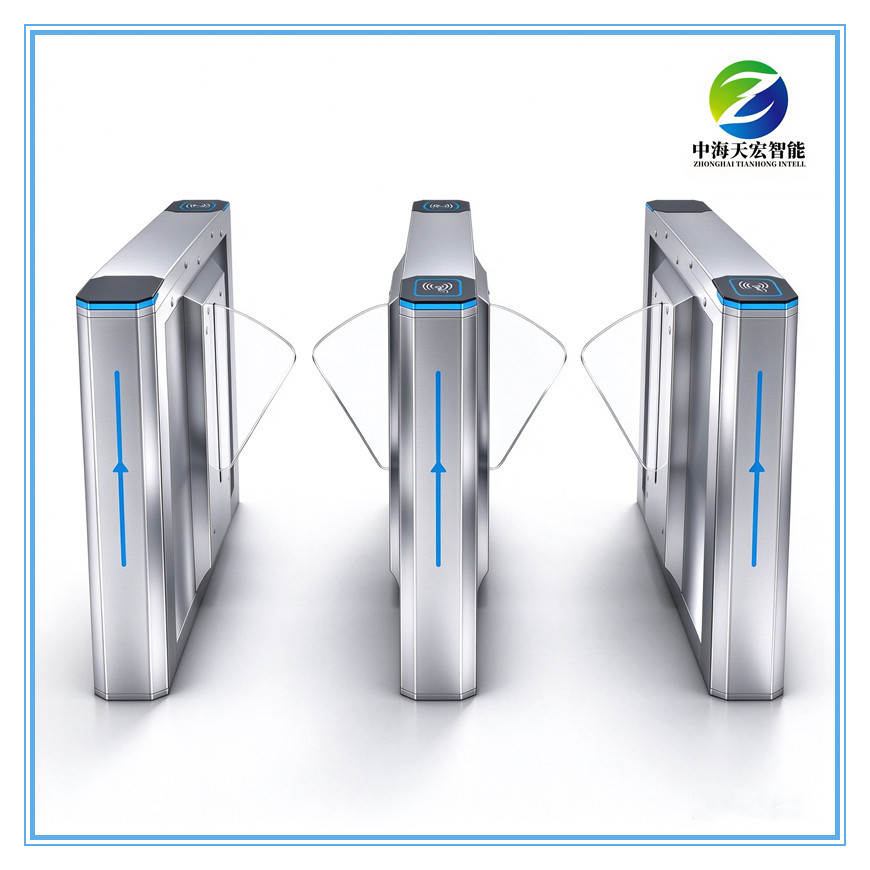

This heavy-duty stainless steel swing flap turnstile provides reliable pedestrian access control for office buildings, commercial premises and factory staff entrances. Fitted with an RFID card reader, it grants passage to authorized card users while blocking unapproved visitors. Built-in anti-pinch sensors protect pedestrians from clamping injuries during gate operation. Bright blue indicator strips clearly display passage status for intuitive user guidance. It supports optional facial recognition module upgrade to realize multi-modal identity verification. Fast opening speed ensures smooth high-volume pedestrian flow during morning and evening rush hours. Its sleek brushed stainless steel casing resists rust and scratches, delivering long service life for indoor scenarios. This intelligent access barrier automatically records access logs for security auditing. Widely used in corporate offices, business parks, schools and industrial sites to strengthen entrance security, manage staff attendance and cut manual guarding workload.
Main Characters
| Swing Flap Turnstile - Product Specifications & Optional Values | ||||
| No. | Attribute | Parameter | Optional Values | |
| 1 | Product Name | Smart Swing Flap Turnstile | Fixed | |
| 2 | Model | Zhonghai Tianhong Custom Model FGB298 | Fixed | |
| 3 | Body Dimension | 1400 × 280 × 980 mm | Fixed | |
| 4 | Housing Material | SUS304 Stainless Steel | Fixed | |
| 5 | Passage Width | 550–900 mm (Customizable) | 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm | |
| 6 | Passage Direction | One-way / Two-way Optional | One-way, Two-way | |
| 7 | Passage Capacity | 30–40 persons per minute | Fixed | |
| 8 | Identification Modes | RFID Card / Face Recognition / QR Code / ID Card | RFID Card, Face Recognition, QR Code, ID Card | |
| 9 | Operating Voltage | AC 220V ±10%, 50/60Hz | AC110V, AC220V | |
| 10 | Rated Power | ≤ 100 W | Fixed | |
| 11 | Gate Opening Time | 0.5–1.5 s | Fixed | |
| 12 | Anti-pinch Protection | Infrared Sensor + Mechanical Anti-pinch | Fixed | |
| 13 | Operating Temperature | -10℃ ~ +55℃ | Fixed | |
| 14 | Operating Humidity | ≤ 90% RH (Non-condensing) | Fixed | |
| 15 | Communication Interface | RS485 / TCP-IP / Dry Contact | RS485, TCP-IP, Dry Contact | |
| 16 | Mechanical Lifespan | ≥ 10,000,000 cycles | Fixed | |
