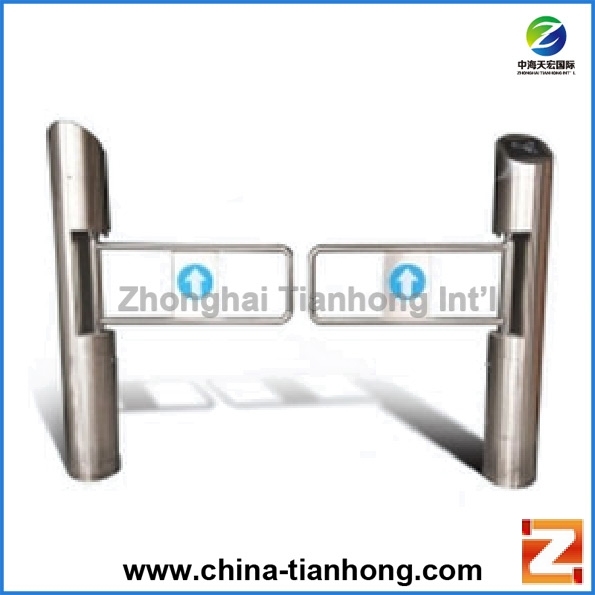

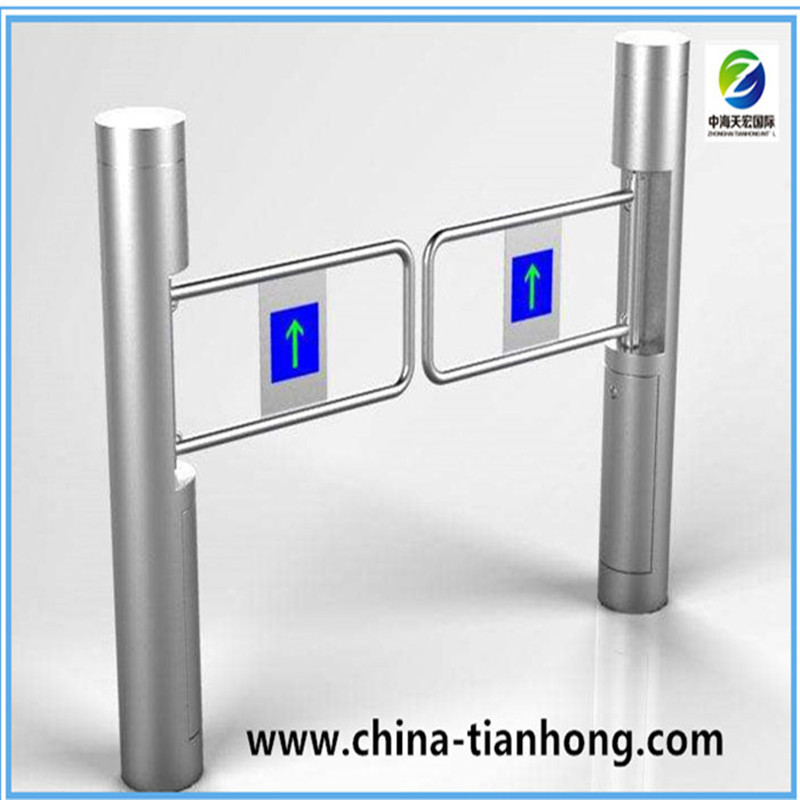

The swing access turnstile gate from turnstile manufacturers Tianhong Turnstiles & Lockers is widely used for supermarket access control. The fence can be added on both sides to allow free access. It is min size, which can save space. It can also be used as an emergency exit. Tianhong Turnstiles & Lockers offers the best quality Swing Gate at the cheapest price online. Professional turnstile manufacturer of Tiahong Turnstiles & Lockers offer the cheapest turnstile gates.
Main Advantages:
- In case of emergency, please cut off the power, Access turnstile will open automatically to allow free passage which is complying with fire safety requirements.
- The access turnstile is suitable for supermarket access control.
- The whole system runs smoothly, with low noise.
- Professional turnstile manufacturers Tianhong Turnstiles & Lockers.
- Alarm function, if there is an illegal intrusion and backward intrusion, the gate will alarm and the door will lock.
- If it comes with a fence, the sensor can be added to realized free access. The middle sensors is to prevent pinch pedestrians.
- Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
- Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency. It can also work as a single direction, which is widely seen in the Supermarket for only entrance.
- Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
- It is a stainless steel arm. The lane width can reach 1600mm which can be used for bicycle or motorcycle access.
Technical Parameters
1. Interface: One Rs 232 interface, two card reader signals (passive), one fire alarm interface.
2. Lane Width:≤900mm
3. Power Input:AC220±10%V,50HZ
4. Following Speed:≥20 people / min.
5. Power Consumption: Static state: single core 20W; dynamic state: single core 60W.
6. Temperature:-10 ℃ - 60 ℃
7. Humidity:5%~95%
8. Working Environment: Indoor, or outdoor matching with rain frame
9. Service Life: More than 5 million continuously
10. Drive Mode: DC electric motor
11. Anti-reverse: Anti-reverse function to ensure one card for one person
12. Overall Dimension: Cylinder height: 1000mm Diameter: 168mm
13. Output:AC24V、DC12V、DC5V
14. IP protection: Ip42
