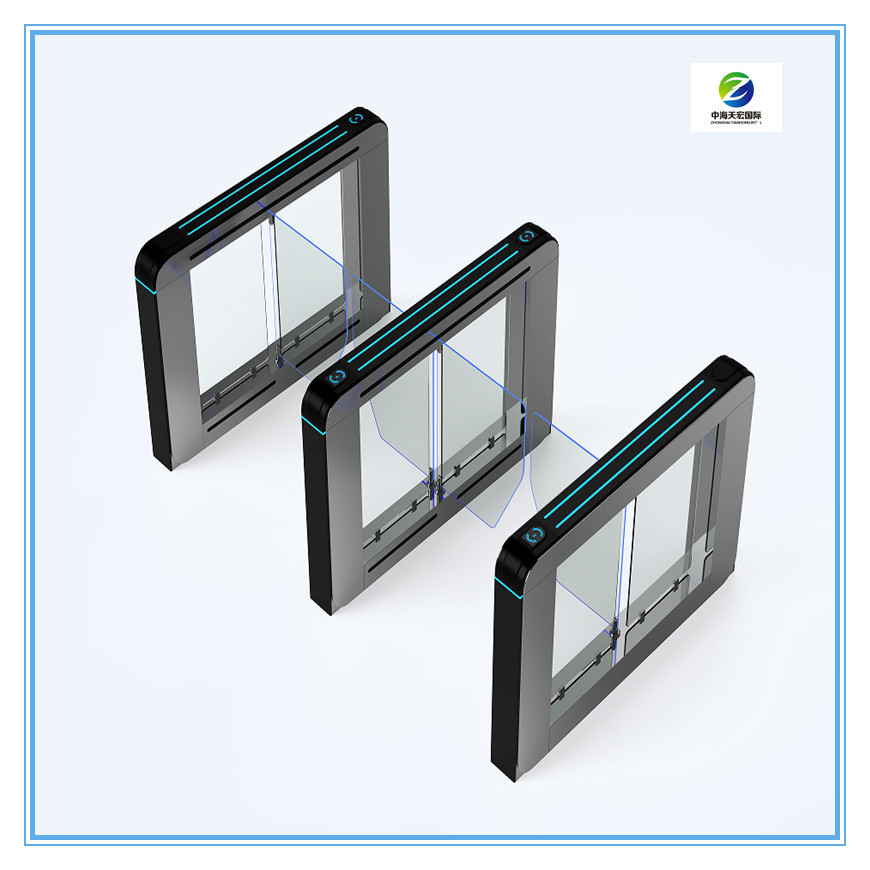

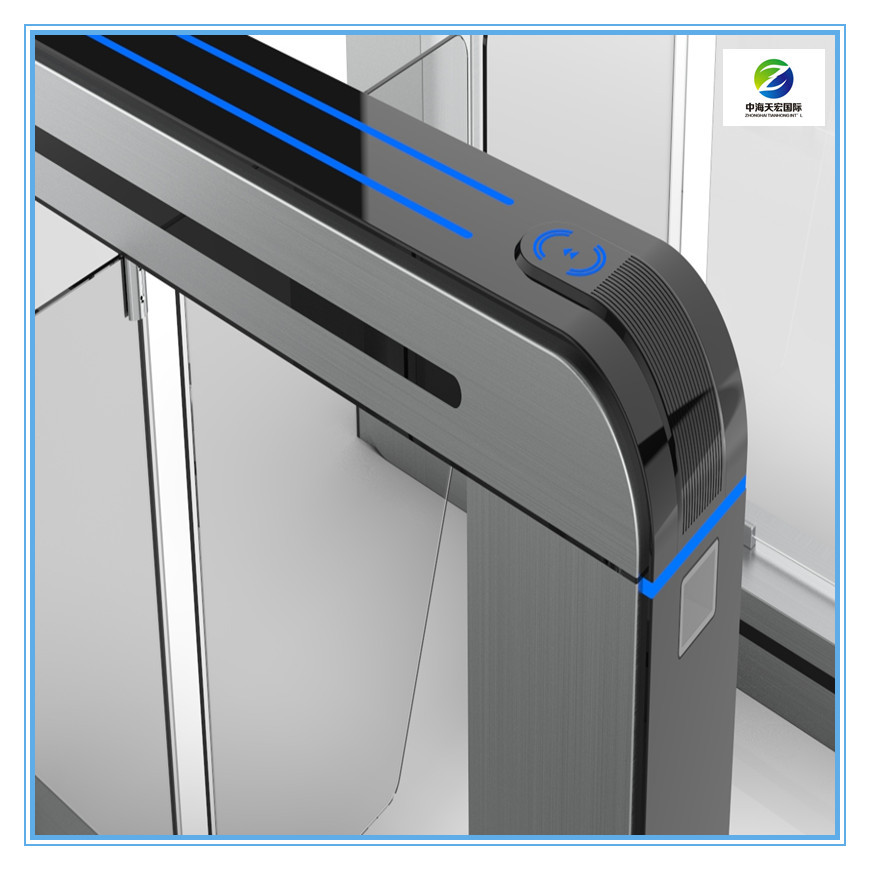

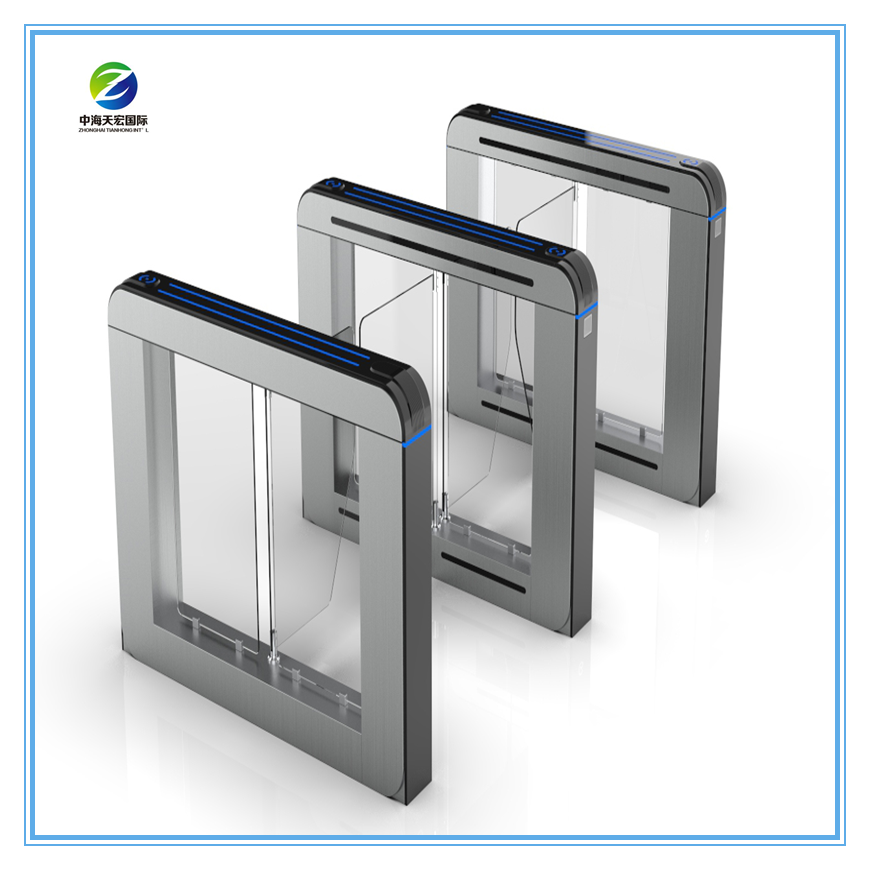

Best Optical Swing Glass Turnstile Gate TH-SGB218

This Optical Turnstile is a slim swing turnstile gate. The standard relay and RS485 interface make it is compatible with all access control systems, such as the RFID card system, face recognition, temperature checker system, Coin operated system, Bar code System, ESD Tester Access Control. Swing Gate Turnstile  is a compact and cost-effective entrance solution.

Access Control Pedestrian Security Turnstile Gates Glass Optical Turnstiles Speed Gate a kind of security turnstile that is controlled by sensors, which includes number of sensors incorporating a matrix of detection beams. The passage lane will be controlled by the logic of the sensors. Only when the optical turnstile gate gets the open signal, the passage is free to access. If not, the sensor will trigger the alarm. An optical turnstile can effectively prevent tailgating. If someone access withing valid card, the alarm will alert the security people. Optical turnstiles are perfect options if you need your space to have an open look. It can speed up the entry process. They can be in both directions running.

Technical Parameters

1. Size: 1400*180*980 mm (can be customized)
2. Lane Width: 600 mm (Standard)  900 mm( Handicapped)
3. Arms material: Acrylic
4. Passing speed: 40 person/min
5. Power supply: 110 V/220 V 50/60 Hz
6. Brushless motor
7. Gate Open Signal: Dry Contact/ Relay
8. Glass turnstile Driving Motor: 24 V
9. Size and material thickness can be customized
10. Casing Material: 304 stainless steel

All models of TIANHONG swing optical turnstiles, speed gates can be customized according to your actual requirements. Some models of swing turnstile gate and sliding gate turnstile can be 900mm passage width or above.

For pricing, designing or any other more information, please inquiry us.
